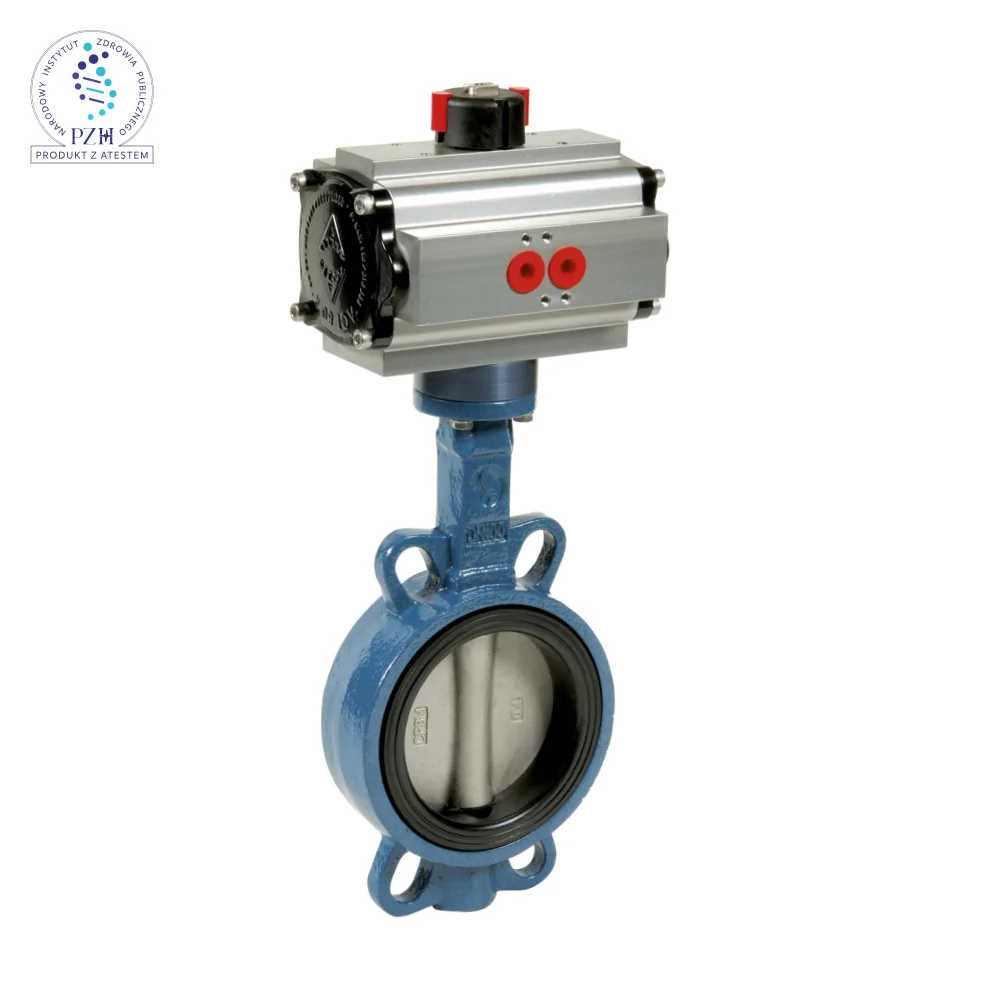

Wafer type butterfly valve (LUG type on request) with a bi-directional pneumatic actuator. Body: gray cast iron GJL-250, disc: ductile iron GJS-400, seals: EPDM, spindle: AISI 416 stainless steel.
Wafer butterfly valve with pneumatic actuator
CODE: J9P.1220
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 40 | 424,88 | on order |
| 50 | 426,74 | on order |
| 65 | 477,44 | on order |
| 80 | 489,07 | on order |
| 100 | 563,49 | on order |
| 125 | 605,58 | on order |
| 150 | 724,42 | on order |
| 200 | 966,05 | on order |
| 250 | 1 696,05 | on order |
| 300 | 2 113,72 | on order |
MAIN FEATURES:
Nominal pressure= 1.6 MPa (DN40 ÷ DN150)
Nominal pressure= 1.0 MPa (DN200 ÷ DN300)
Temperature range= -10°C ÷ +110°C
ΔPmax = 1.0 MPa
For flanged ends PN 10/16
Bidirectional pneumatic actuator
Control pressure 0.6 MPa (6 bar)
On request a version with a return cycle operated by a spring
Meets requirements of Pressure Equipment Directive – 2014/68/EU
PZH certified for potable water
