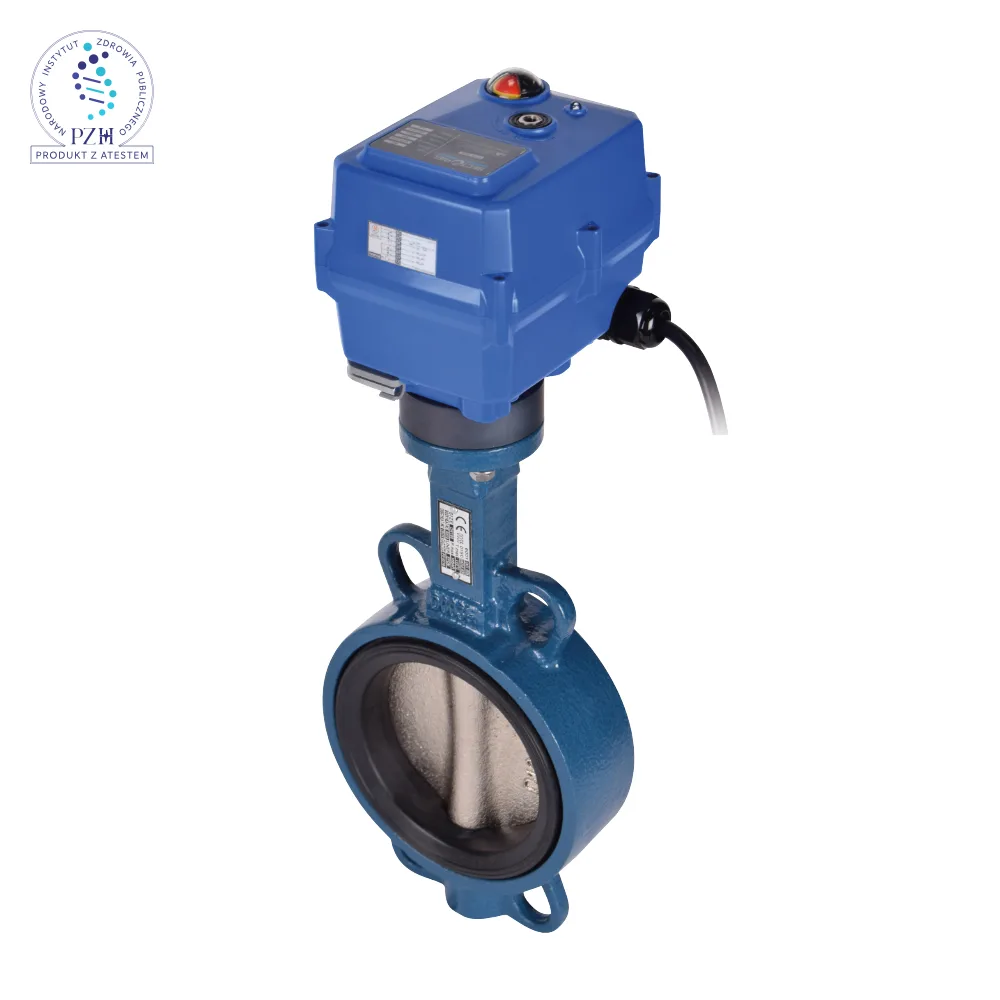

Wafer type butterfly valve (LUG type on request) with a bi-directional electric drive. Body: gray cast iron GJL-250, disc: A351-CF8M steel, seals: EPDM, spindle: AISI 416 stainless steel. On request, seals made of VITON or NBR.
Wafer butterfly valve with electric actuator
CODE: J9E.1420
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 40 | 830,00 | on order |
| 50 | 831,16 | on order |
| 65 | 851,86 | on order |
| 80 | 867,21 | on order |
| 100 | 1 393,02 | on order |
| 125 | 1 397,67 | on order |
| 150 | 2 218,14 | on order |
| 200 | 2 750,23 | on order |
| 250 | 3 572,56 | on order |
MAIN FEATURES:
Nominal pressure= 1.6 MPa (DN40 ÷ DN150)
Nominal pressure= 1.0 MPa (DN200 ÷ DN250)
Temperature range= -10°C ÷ +110°C
ΔPmax = 1.0 MPa
For flanged ends PN 10/16
Bidirectional electric drive
PZH certified for potable water
Supply voltage 230V (24V on request)
NBR and VITON seals available on request
Opening time 8s ÷30s (depending on torque)
Meets requirements of Pressure Equipment Directive – 2014/68/EU
