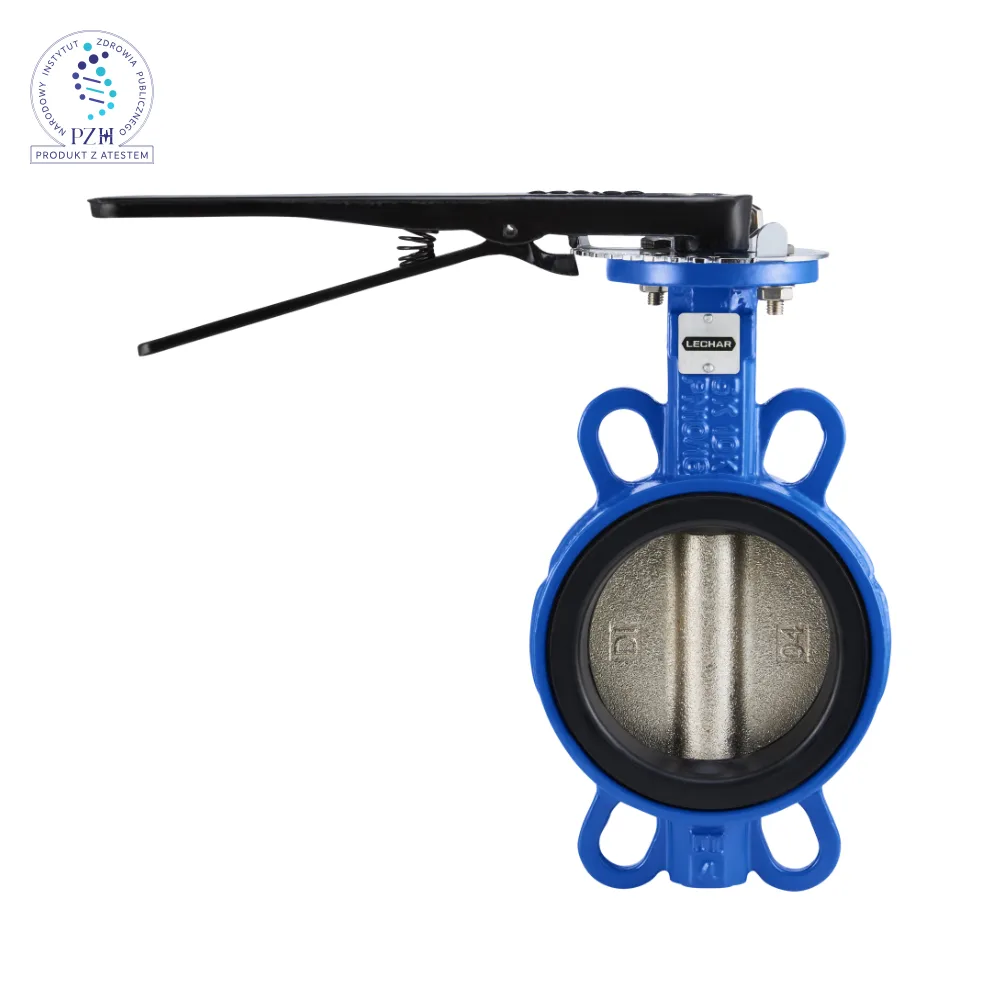

Wafer butterfly valve – model B

CODE: K9.2220

Wafer type butterfly valve for water supply, heating and industrial purposes. The valve is opened or closed by turning the lever 90 degrees. There is a latch in the handle to lock the selected position. Body and disc: ductile iron GJS-500-7, seals: EPDM, spindle: 1.4005 stainless steel.

DN Netto price (EUR): Availability
50  39,07 standard
65  43,26 standard
80  48,60 standard
100  68,60 standard
125  93,49 standard
150 113,49 standard
200 207,91 standard

MAIN FEATURES:

Face-to-face length in accordance with EN 558-1: row 20

Execution in accordance with EN 1074-2

For flanges PN 10/16 compliant with EN 1092-2

Actuator connection according to ISO 5211

Nominal pressure= 1.6 MPa

Temperature range= -20°C ÷ +120°C

Working medium: water, non-aggressive liquids, glycols up to 50%

PZH certified for potable water
