It is used to regulate or close the flow of high-density working media, emulsions and powdered and granulated working media. It is used in sewage networks, sewage treatment plants and for industrial purposes. Body and the wedge: AISI 316 stainless steel, seals: EPDM.

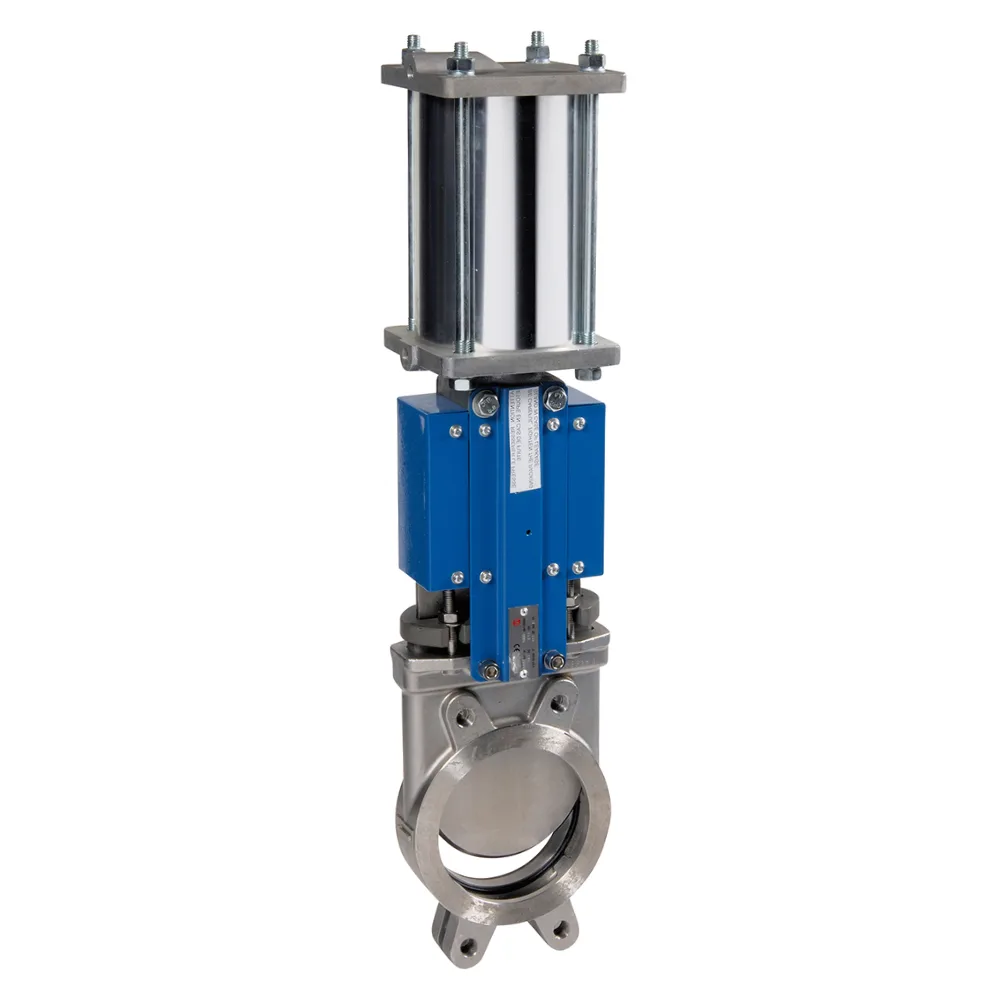

Unidirectional wafer knife gate valve with pneumatic actuator
CODE: P445TH
| DN | Working pressure | Netto price (EUR): | Availability |
|---|---|---|---|
| 50 | 1,0 MPa | 1 219,53 | on order |
| 65 | 1,0 MPa | 1 237,67 | on order |
| 80 | 1,0 MPa | 1 272,09 | on order |
| 100 | 1,0 MPa | 1 610,23 | on order |
| 125 | 1,0 MPa | 2 508,60 | on order |
| 150 | 1,0 MPa | 2 946,74 | on order |
| 200 | 1,0 MPa | 3 548,60 | on order |
| 250 | 0,8 MPa | 6 250,93 | on order |
| 300 | 0,6 MPa | 8 780,23 | on order |
MAIN FEATURES:
Pressure according to the table above
Temperature range= 0°C ÷ +110°C
ΔPmax = 0.7 MPa
Bidirectional pneumatic actuator
Control pressure of the air 0.5 MPa ÷ 0.7 MPa
For flanged ends PN10 (threaded flange holes)
Meets requirements of Pressure Equipment Directive – 2014/68/EU
