It is used to regulate or close the flow of high-density working media, emulsions and powdered and granulated working media. It is used in sewage networks, sewage treatment plants and for industrial purposes. Body and wedge: AISI 316 stainless steel, seals: EPDM.

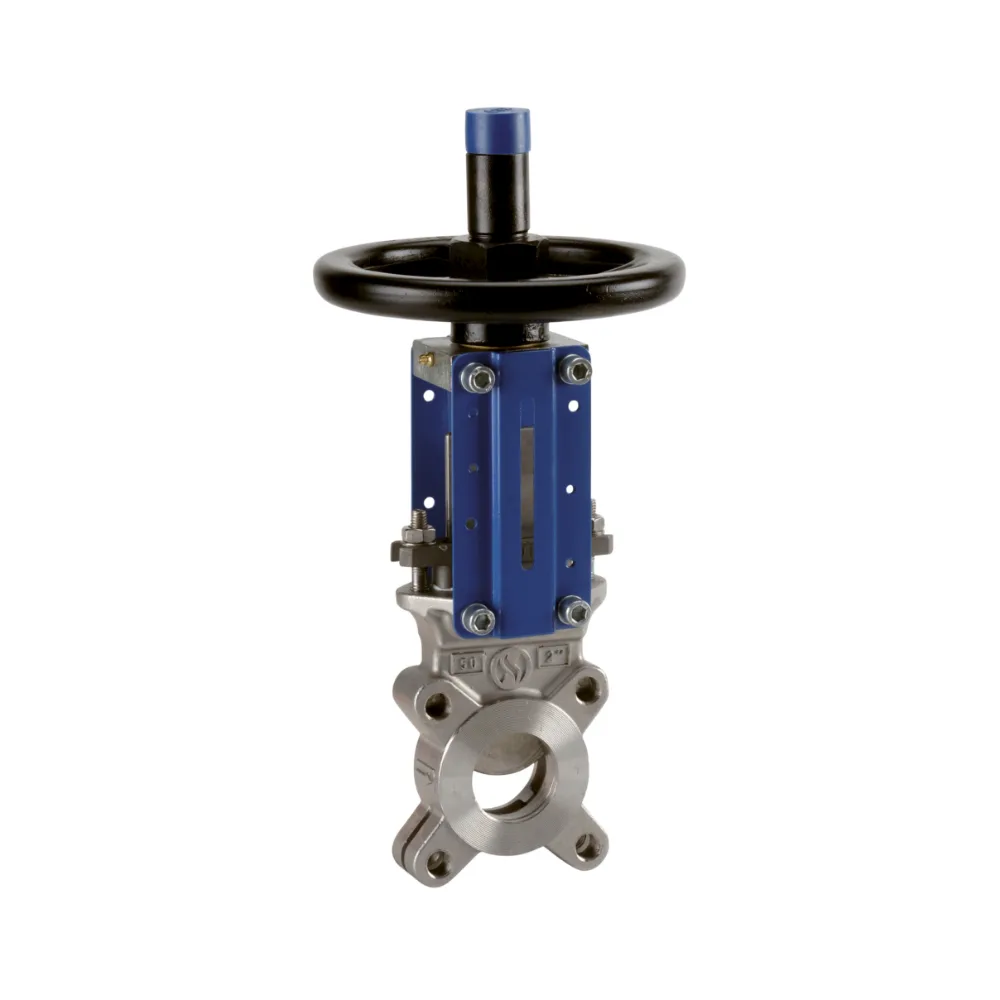

Unidirectional wafer knife gate valve
CODE: 172TH
| DN | Working pressure | Netto price (EUR): | Availability |
|---|---|---|---|
| 50 | 1,0 MPa | 661,63 | on order |
| 65 | 1,0 MPa | 787,67 | on order |
| 80 | 1,0 MPa | 934,65 | on order |
| 100 | 1,0 MPa | 1 039,77 | on order |
| 125 | 1,0 MPa | 1 260,23 | on order |
| 150 | 1,0 MPa | 1 586,74 | on order |
| 200 | 1,0 MPa | 2 545,81 | on order |
| 250 | 0,8 MPa | 3 925,81 | on order |
| 300 | 0,6 MPa | 6 175,81 | on order |
| 350 | 0,4 MPa | 10 605,81 | on order |
| 400 | 0,4 MPa | 12 735,81 | on order |
MAIN FEATURES:
Pressure according to the table above
Temperature range= -15°C ÷ +110°C
For flanged ends PN10 (threaded flange holes)
Meets requirements of Pressure Equipment Directive – 2014/68/EU
