It is used to regulate or close the flow of high-density working media, emulsions and powdered and granulated working media. It is used in sewage networks, sewage treatment plants and for industrial purposes. Body: gray cast iron GJL-250, wedge: AISI 304 stainless steel, seals: NBR.

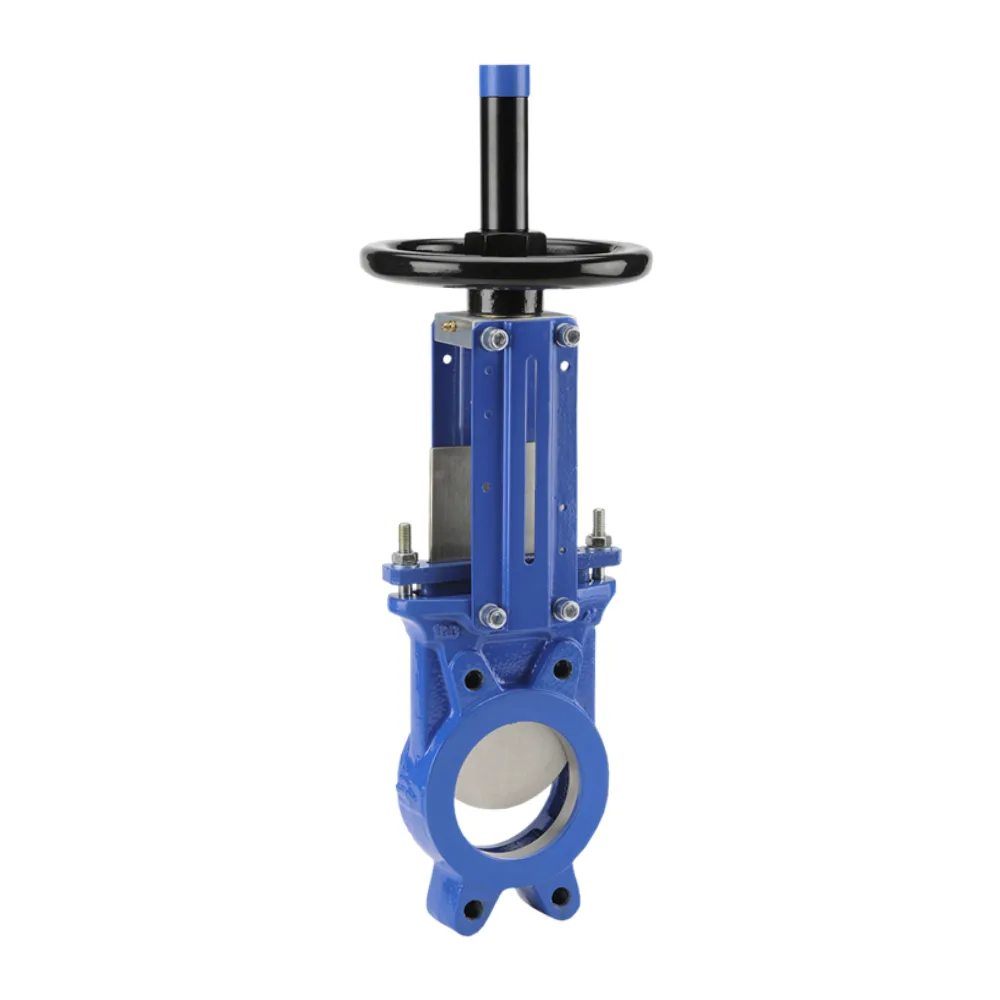

Unidirectional wafer knife gate valve
CODE: 170TH
| DN | Working pressure | Netto price (EUR): | Availability |
|---|---|---|---|
| 50 | 1,0 MPa | 422,09 | on order |
| 65 | 1,0 MPa | 454,42 | on order |
| 80 | 1,0 MPa | 486,98 | on order |
| 100 | 1,0 MPa | 551,86 | on order |
| 125 | 1,0 MPa | 649,30 | on order |
| 150 | 1,0 MPa | 727,21 | on order |
| 200 | 1,0 MPa | 1 213,95 | on order |
| 250 | 0,8 MPa | 1 596,98 | on order |
| 300 | 0,6 MPa | 2 155,58 | on order |
| 350 | 0,4 MPa | 3 797,91 | on order |
| 400 | 0,4 MPa | 4 823,72 | on order |
| 450 | 0,3 MPa | 6 427,21 | on order |
| 500 | 0,3 MPa | 6 764,88 | on order |
| 600 | 0,3 MPa | 11 036,74 | on order |
| 700 | 0,2 MPa | 19 476,51 | on order |
MAIN FEATURES:
Pressure according to the table above
Temperature range= -10°C ÷ +90°C
On request, version with seals:
- EPDM (Temperature range= -10°C ÷ +110°C)
- PTFE: (Temperature range= -10°C ÷ +180°C)
For flanged ends PN10 (threaded flange holes)
Meets requirements of Pressure Equipment Directive – 2014/68/EU
