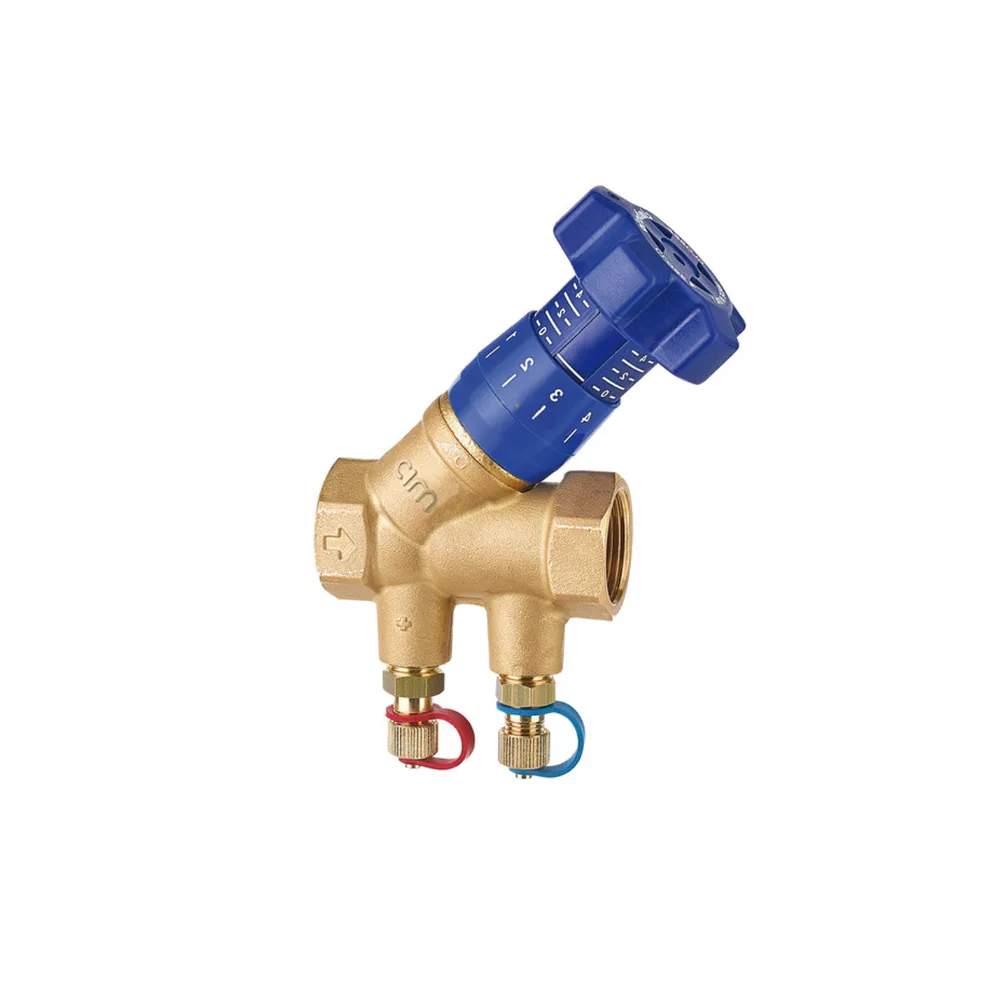

Threaded balancing valve with variable orifice and measuring ports

CODE: 786OT

Balancing valves that in one body perfectly combine the properties of a flow control valve and a device measuring this quantity.
Made of CW 617N brass and are suitable for use in water, heating and cooling installations.

DN Kvs [m³/h] Netto price (EUR): Availability
1/2" 3,94  64,42 on order
3/4" 5,33  67,44 on order
1" 8,92  79,07 on order
1"1/4 16,68 129,53 on order
1"1/2 25,12 193,95 on order
2" 36,98 224,19 on order
  • Knob locking mechanism so that once the valve has been precisely set to a given flow rate, it can then be closed and reopened, always exactly to its original position.
  • Allen key for locking the valve setting.
  • Valve setting easy to read from the scale on the knob, from any angle.
  • Valve plug gasket made of EPDM to ensure tight shut-off of the flow of the working medium.

MAIN FEATURES:

Nominal pressure= 2.5 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids

ISO 228 threaded connections
