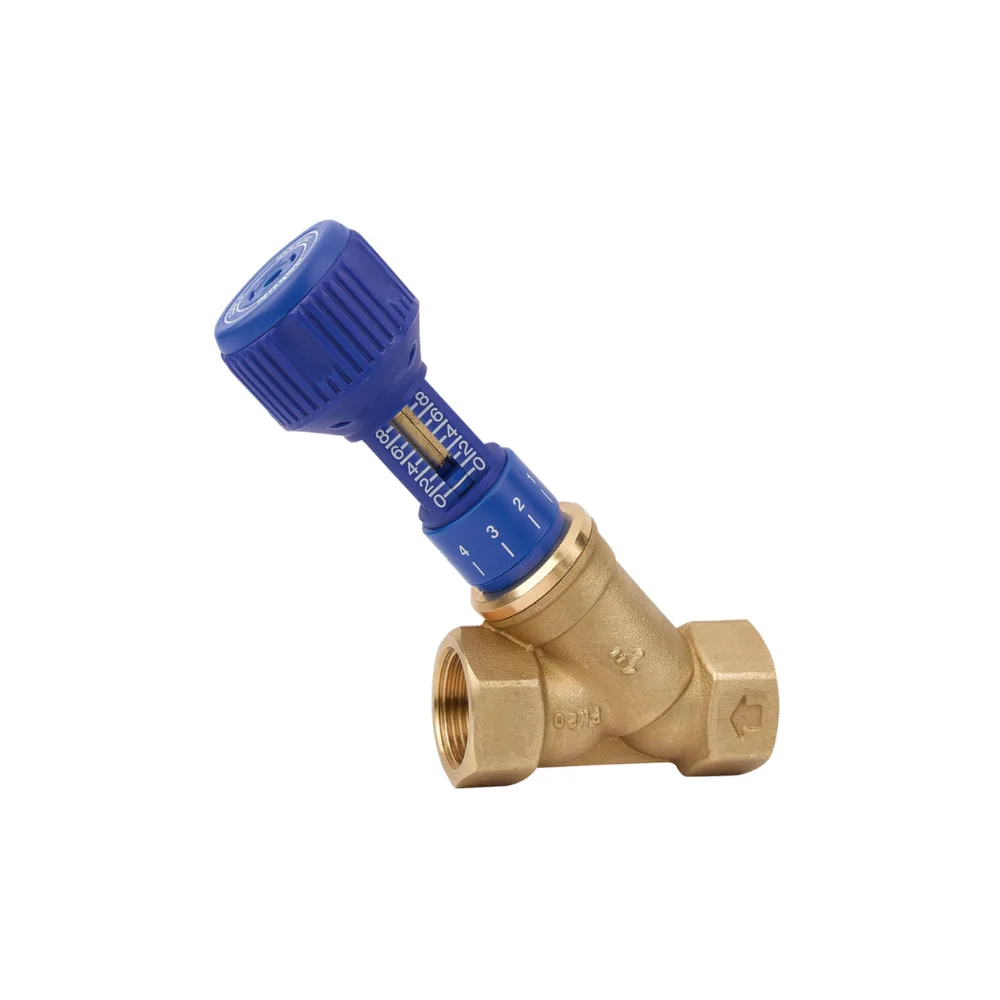

Threaded balancing valve

CODE: 727OT

Cim 727OT is a balancing valve that, working together with a separate measuring orifice, provide high accuracy flow balancing at any valve setting.
Made of CW 617N brass and are suitable for use in water, heating and cooling installations.

DN Kvs [m³/h] Netto price (EUR): Availability
1/2" 3,91    64,88 on order
3/4" 7,28    81,63 on order
1" 11,76    92,33 on order
1"1/4 21,60   117,67 on order
1"1/2 28,46   181,40 on order
2" 50,52   243,49 on order
  • Knob locking mechanism so that once the valve has been precisely set to a given flow rate, it can then be closed and reopened, always exactly to its original position.
  • Allen key for locking the valve setting.
  • Easy to read the valve setting, from the scale on the knob, from any angle.
  • Valve plug seal, made of EPDM, to ensure tight shut-off of the flow of the working medium.
  • Can be combined with the Cim 721 fixed measuring orifice, ensuring accurate measurement of differential pressure and flow.

MAIN FEATURES:

Nominal pressure= 2.0 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids

ISO 7/1 threaded ends
