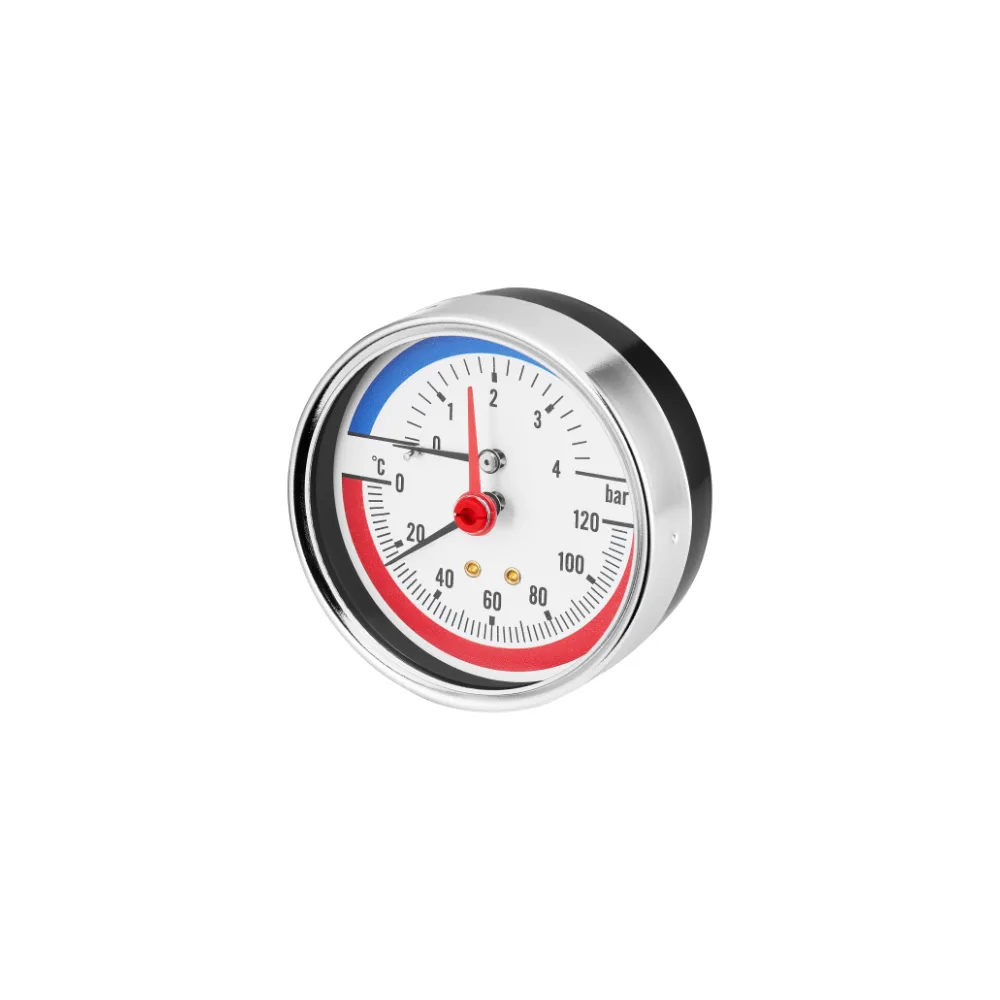

Gauge for measuring temperature and pressure in water and heating installations. This thermo-manometer has an axial connection. The diameter of the dial is 80 mm. Body and disc are made of painted steel, and the threaded connection (male) is made of CW617N brass.
Thermo-manometer ø 80mm – axial connection
CODE: 508
| DN | Pmax[bar] / Tmax[st.C] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 4,0 / 120 | 17,91 | standard |
MAIN FEATURES:
Pressure range= 0 ÷ 0,4 MPa (0 ÷ 4 bar)
Temperature range= +20°C ÷ +120°C
End M threaded ISO 228/1
Meets requirements of EN 837-1:2000P and EN 13190:2004P standards
