The valve is used to protect the installation against the effects of excessive pressure increase. It is used for solid fuel boilers without a tank or safety coil. Body and stem made of CW 617N brass, seals – EPDM, spring made of AISI 316 stainless steel. Capillary length is 1300 mm.

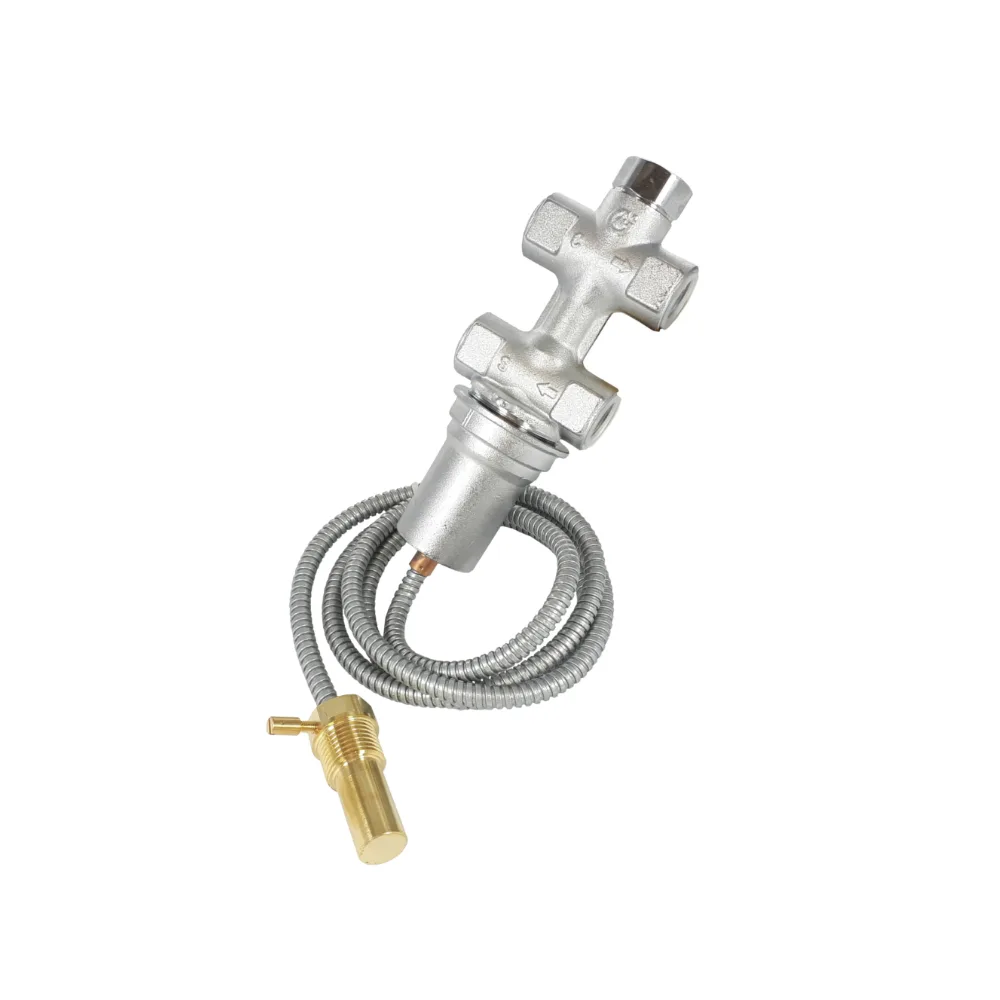

Thermal safety valve with probe
CODE: ST544-6
| DN | P [bar] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 6 | 375,81 | on order |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= +5°C ÷ +110°C
Maximum temperature setting= +100°C
Maximum medium discharge= 1600 dm3/h
Ends F threaded ISO 228/1
Meets requirements of the Pressure Equipment Directive 2014/68/EU
