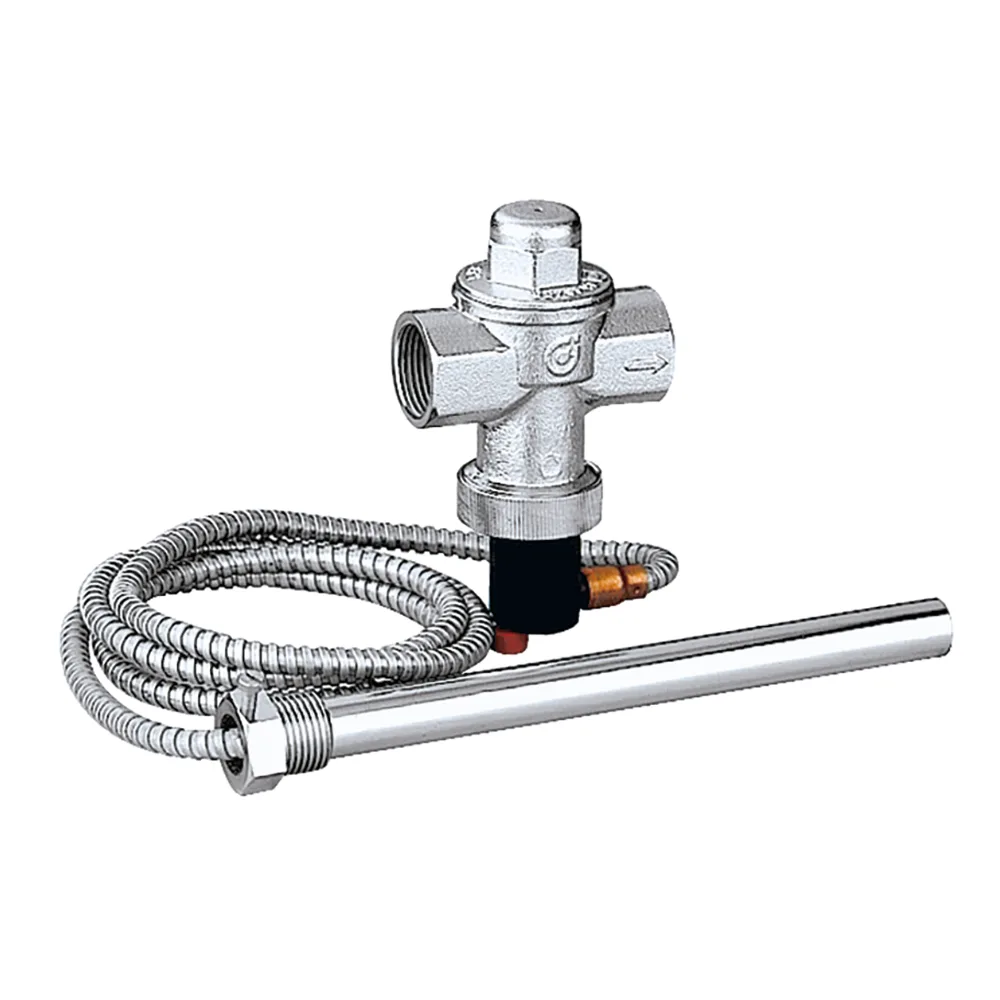

Thermal safety valve with probe

CODE: ST543-10

The valve is used to protect the installation against the effects of excessive pressure increase. It is used for solid fuel boilers equipped with a tank or safety coil. Body made of CW617N brass, stem: CW 614N brass, seals – EPDM, spring made of stainless steel. Capillary length is 1300 mm.

DN P [bar] Netto price (EUR): Availability
3/4" 10   234,19 on order

MAIN FEATURES:

Nominal pressure= 1,0 MPa

Temperature range= +5°C ÷ +110°C

Maximum temperature setting= +95°C

Maximum medium discharge= 3000 dm3/h

Ends F threaded ISO 228/1

Meets requirements of the Pressure Equipment Directive 2014/68/EU
