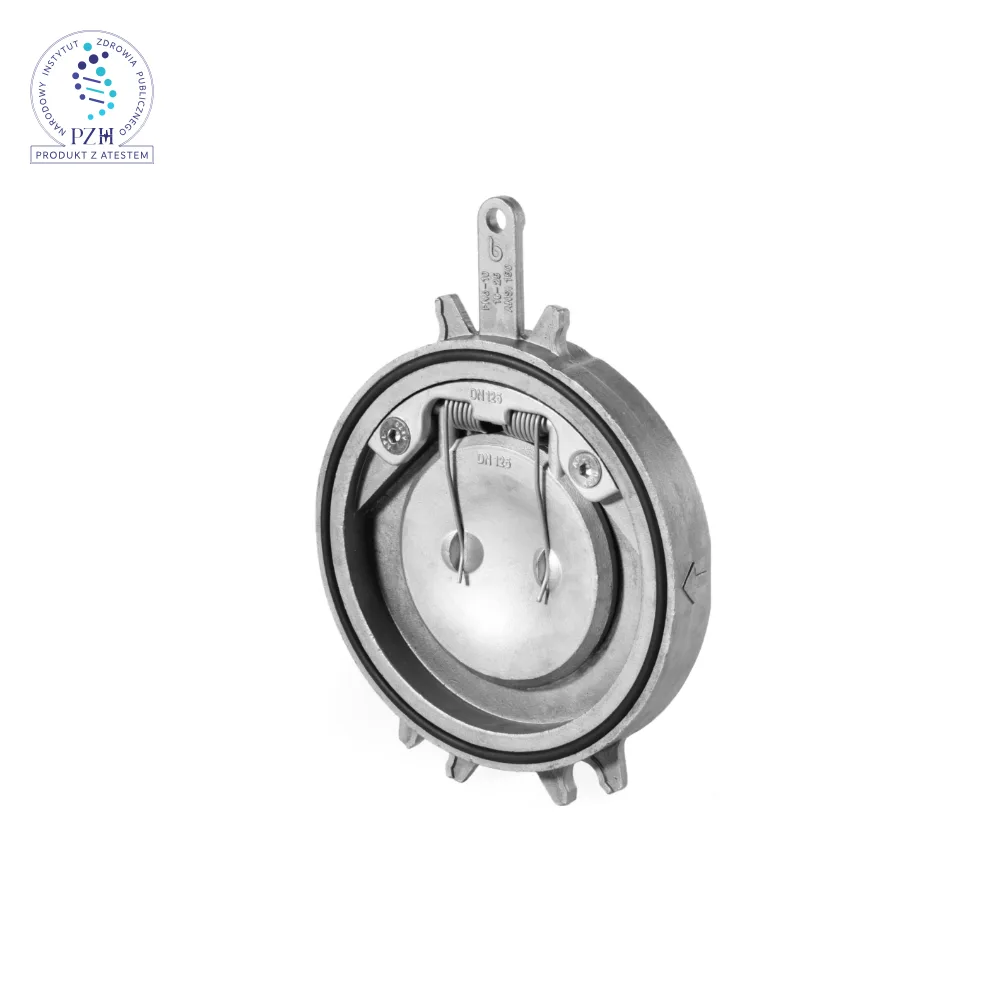

Swing wafer check valve, spring loaded

CODE: M6.620

Body, disc: AISI 316 stainless steel, spring: AISI 302 stainless steel, seals: NBR.
* On request, seals: Viton®, PTFE.

DN Netto price (EUR): Availability
50   265,35 on order
65   335,58 on order
80   390,23 on order
100   469,53 on order
125   646,51 on order
150   807,44 on order
200 1 197,44 on order
250 1 977,67 on order

MAIN FEATURES:

For flange connections PN 6, PN 10, PN 16, PN 25

Nominal pressure= 2.5 MPa (for DN 50 ÷ DN 200), 1.6 MPa (for DN 250)

Temperature range= -10ºC ÷ +100ºC

Working medium: water, non-aggressive liquids

Meets requirements of Pressure Equipment Directive – 2014/68/EU

PZH certified for potable water
