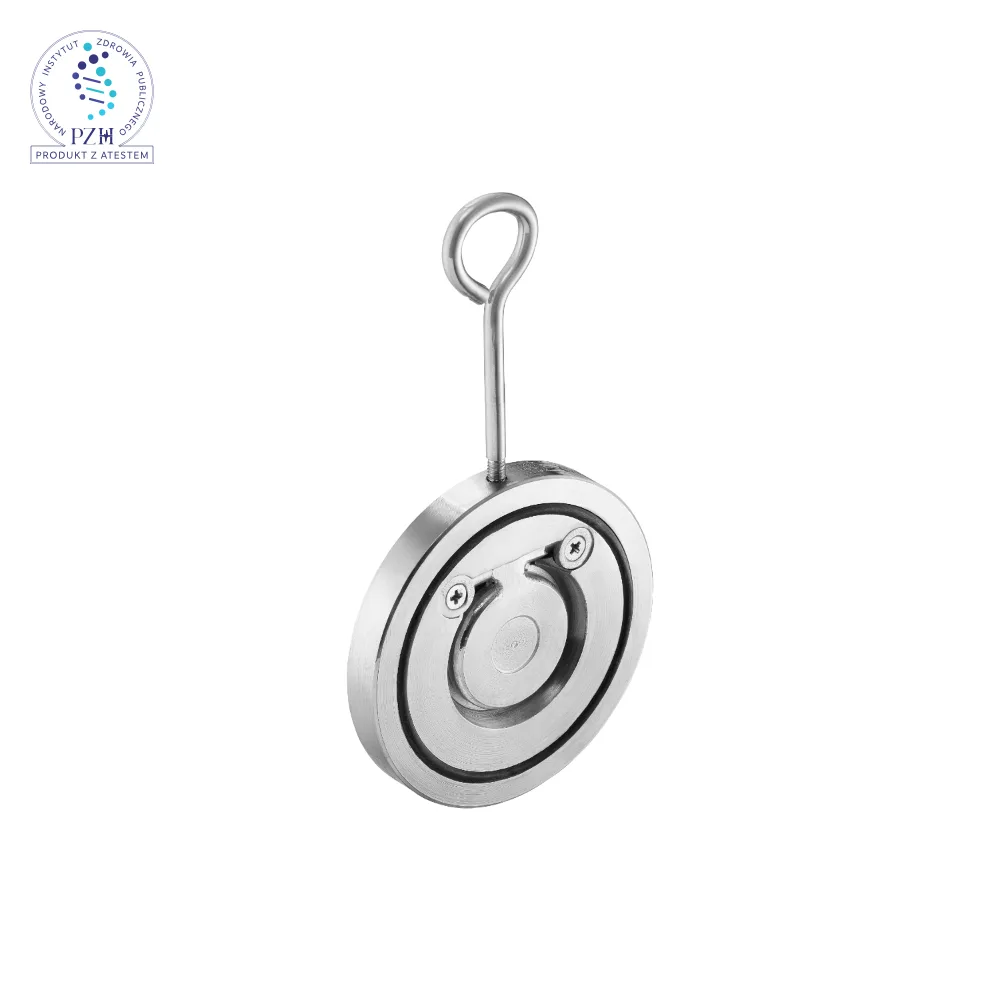

Swing wafer check valve

CODE: 06.600

Swing wafer non-return valve is used to prevent the working medium from flowing back in the pipeline. Body and disc: AISI 316 stainless steel, sealing rings: FKM.

DN Netto price (EUR): Availability
40    158,60 on order
50    158,84 on order
65    221,63 on order
80    260,93 on order
100    346,05 on order
125    476,51 on order
150    628,37 on order
200  1 033,02 on order
250  1 821,86 on order
300  2 608,84 on order
350  3 469,53 on order
400  4 707,44 on order
450  6 322,56 on order
500  8 274,88 on order
600 12 339,77 on order

MAIN FEATURES:

Nominal pressure= 1,6 MPa (DN40-DN200)

Nominal pressure= 1,0 MPa (DN250-DN600)

Temperature range= -10°C ÷ +180°C

Wafer ends for PN10/16 flanges

PZH certified for potable water
