Heavy-duty two-piece full-bore ball valve for use in industrial, chemical and food installations. Body, ball, spindle: AISI 316 stainless steel, ball seals: PTFE.

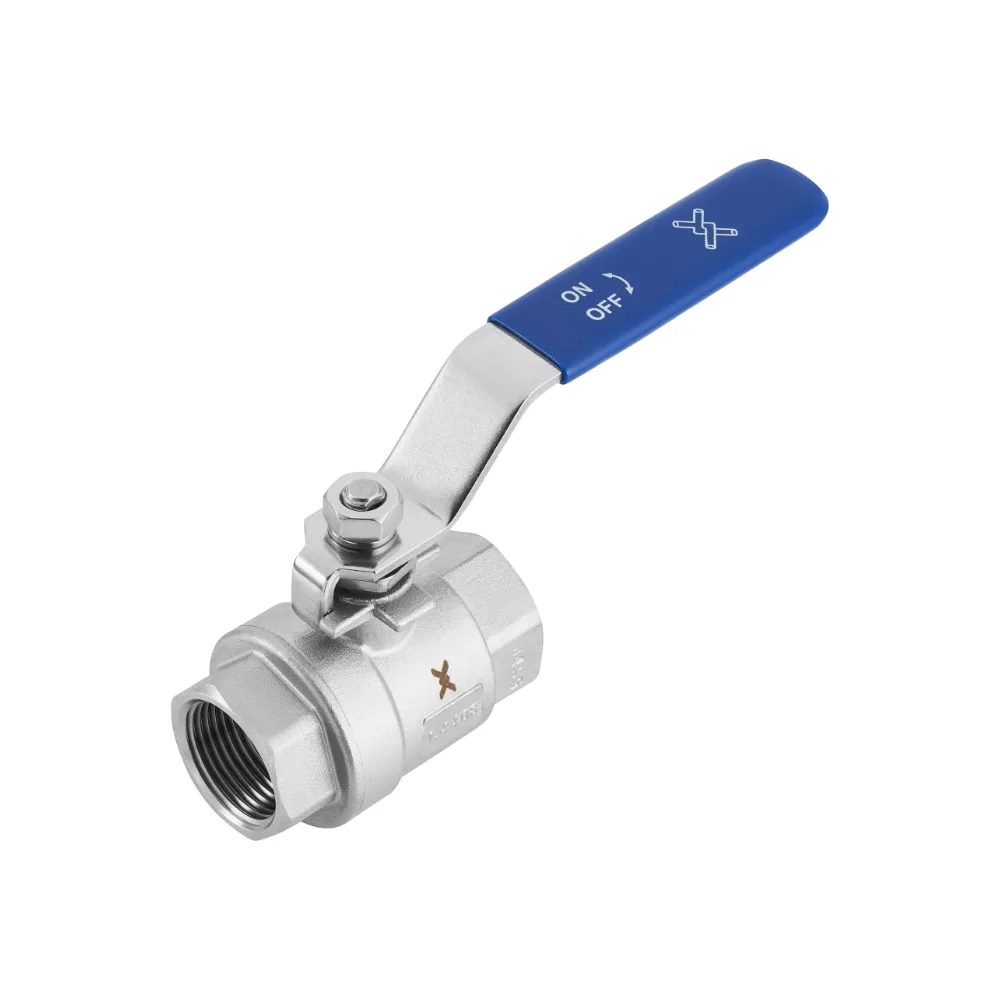

Stainless steel 2-piece ball valve
CODE: 2660
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 1/4" | 15,58 | on order |
| 3/8" | 16,98 | on order |
| 1/2" | 18,14 | standard |
| 3/4" | 24,88 | standard |
| 1" | 34,19 | standard |
| 1"1/4 | 57,44 | standard |
| 1"1/2 | 69,07 | standard |
| 2" | 118,60 | on order |
| 2"1/2 | 215,58 | on order |
| 3" | 321,63 | on order |
MAIN FEATURES:
Nominal pressure= 6,3 MPa (1/4″ – 2″); 4,0 MPa (2″1/2); 2,0 MPa (3″)
Temperature range= -20°C ÷ +180°C
Ends F threaded ISO 228/1
Conform PN-EN 13828 standard
