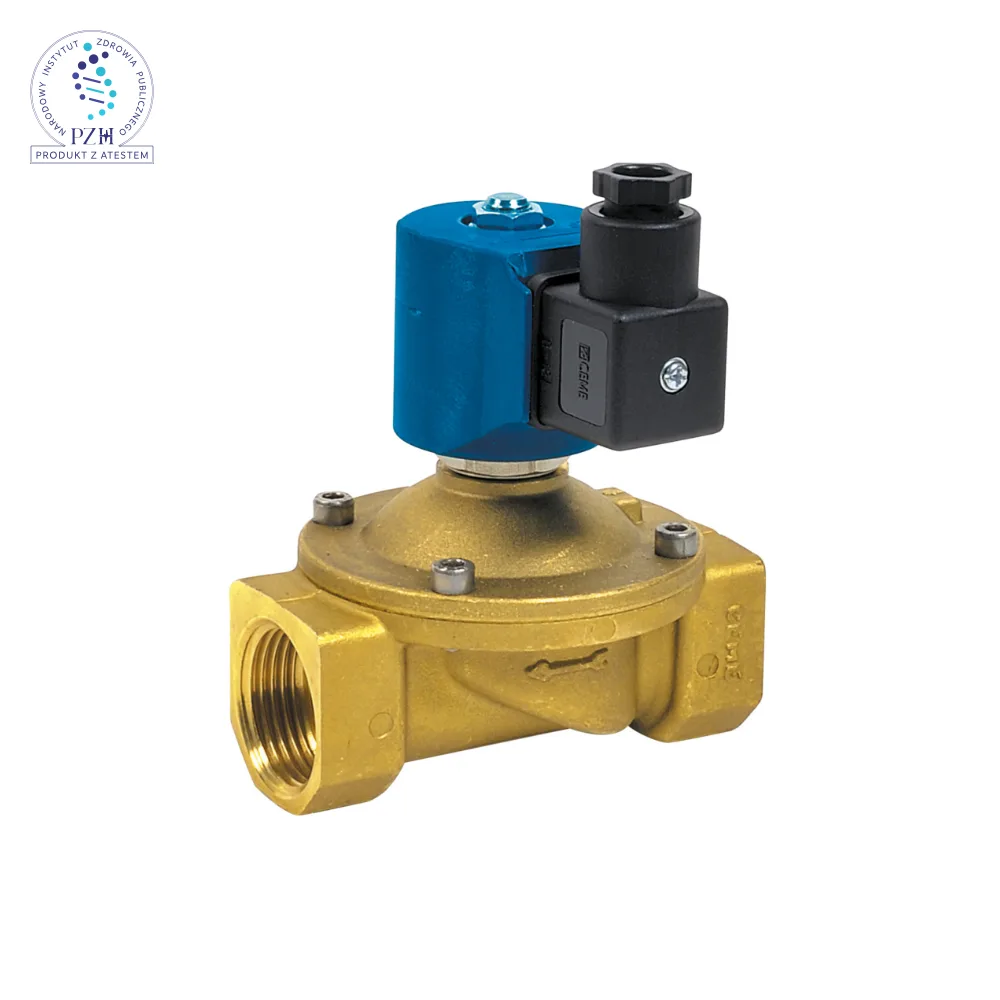

Diaphragm solenoid valve for water and non-aggressive liquids. Normally closed (NC) – opening occurs when current is applied to the coil. The valve does not require a minimum pressure difference for proper operation! It is used to open and close the flow of the working medium. Body and cover made of CW 617N brass, spindle and spring made of AISI 303 stainless steel, diaphragm: NBR, closing plug PTFE. Coil supply voltage to choose from – 230V or 24V.
Solenoid valve – normally closed – requires no differential pressure
CODE: VSO84
| DN | Kv [m³/h] | Netto price (EUR): | Availability |
|---|---|---|---|
| 3/8" | 2.2 | 167,44 | on order |
| 1/2" | 2.2 | 176,28 | on order |
| 3/4" | 5.5 | 208,60 | on order |
| 1" | 7.5 | 206,51 | on order |
| 1"1/4 | 17.5 | 851,63 | on order |
| 1"1/2 | 19 | 895,58 | on order |
| 2" | 32.4 | 1 074,42 | on order |
MAIN FEATURES:
It does not require a minimum pressure difference for proper operation
The maximum pressure difference must not exceed the values specified in the catalog card for the valve to open
Nominal pressure= 1,0 MPa
Temperature range= -10°C ÷ +80°C
Ends F threaded ISO 228/1
Meets requirements of Directive 2014/68/EU – exclusion of Art. 4, p. 3.
PZH certified for potable water
