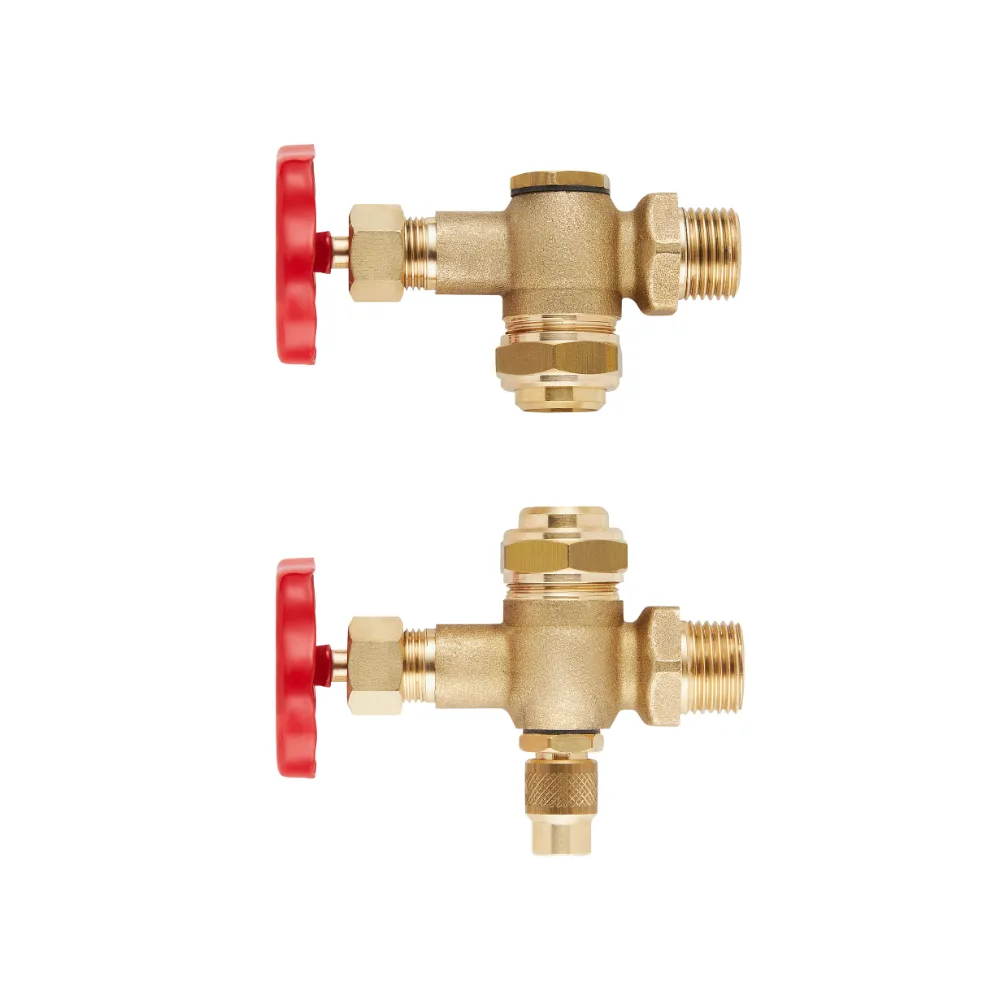

Water level valve set is used to control the liquid level in tanks that require such control. It is equipped with two shut-off valves with threaded and compression ends. The lower shut-off valve is equipped with a drain. This makes the tube resistant to dirt left by residual liquid. The valve body and closing assembly are made of CW 617N brass, seals: NBR, knobs: painted carbon steel.
Set of water level valves with a relief valve
CODE: 1801
| DN | Tube socket diameter [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 16 | 73,26 | standard |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= 0°C ÷ +80°C
Ends M threaded ISO 228/1
Conform PN-86/M-75198 standard
