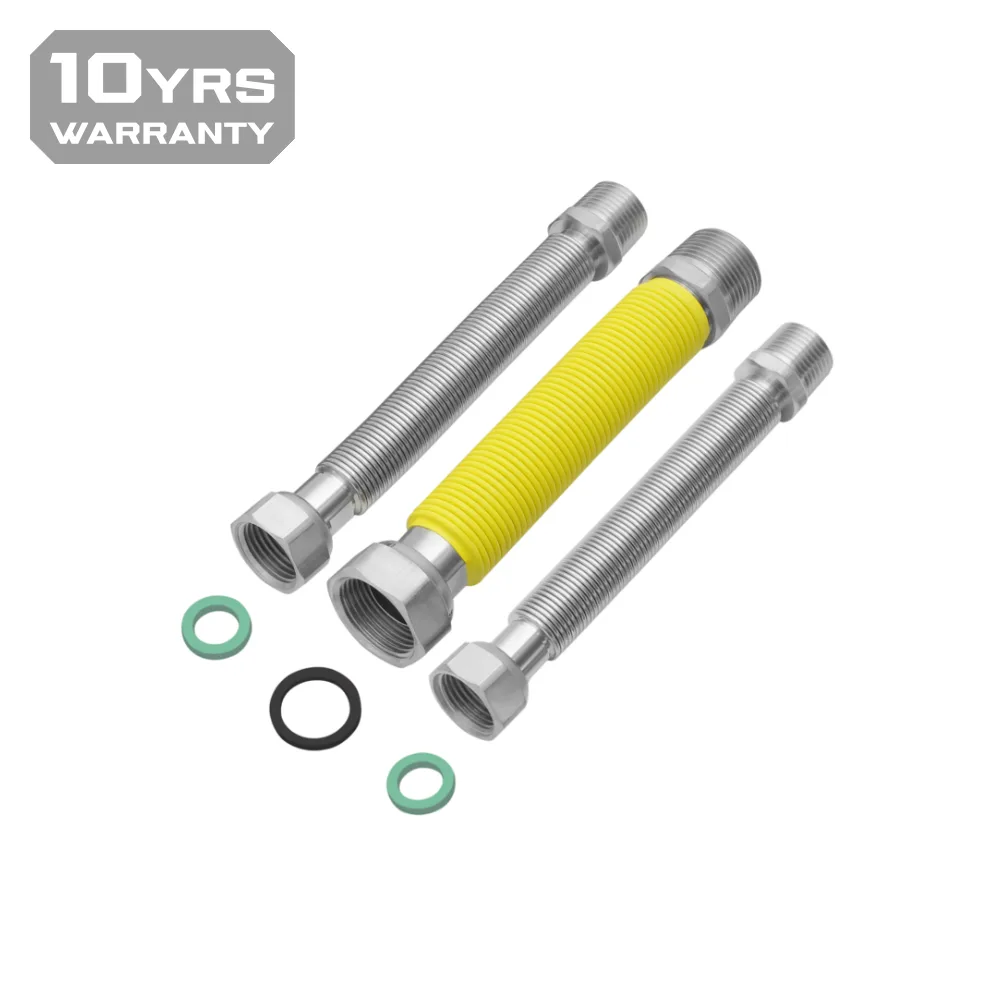

The installation kit consists of 3 flexible and extensible hoses: 1x gas connection (3/4″) and 2x water connections 1/2″. The hoses constitute a set needed to connect a monofunctional boiler and enable connections with a length between 150-300 mm. The set is equipped with appropriate seals for water and gas.
Set for connecting of monofunctional boilers Flexo-Combo-Mono
CODE: FPG-COMBO-MONO
| DN | Gas hose diameter | Netto price (EUR): | Availability |
|---|---|---|---|
| 150-300 | 3/4" | 40,47 | standard |
To download:
EASY INSTALLATION
- The flexible structure of the hoses makes it easier to connect devices.
- They enable installation with a small bending radius, without reducing the flow of the working medium.
SECURITY
- Water connection hoses manufactured in compliance with the highest standards of workmanship, with particular emphasis on the safety and health of their users (in accordance with EN ISO 10380 standard).
- Gas connection hose meet restrictive safety requirements of UNI 11353 standard.
LIFETIME
- Thermal treatment during the production process unifies the material from which the hoses are made, eliminates stress, and therefore extends their service life.
MAIN FEATURES:
Working media:
- Gas pipeline: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane. Nominal pressure= 0.05 MPa, Ambient temperature range = -20°C ÷ +120°C
- Water pipelines: water. Nominal pressure= 0.7 MPa, Temperature range= -10°C ÷ +100°C
