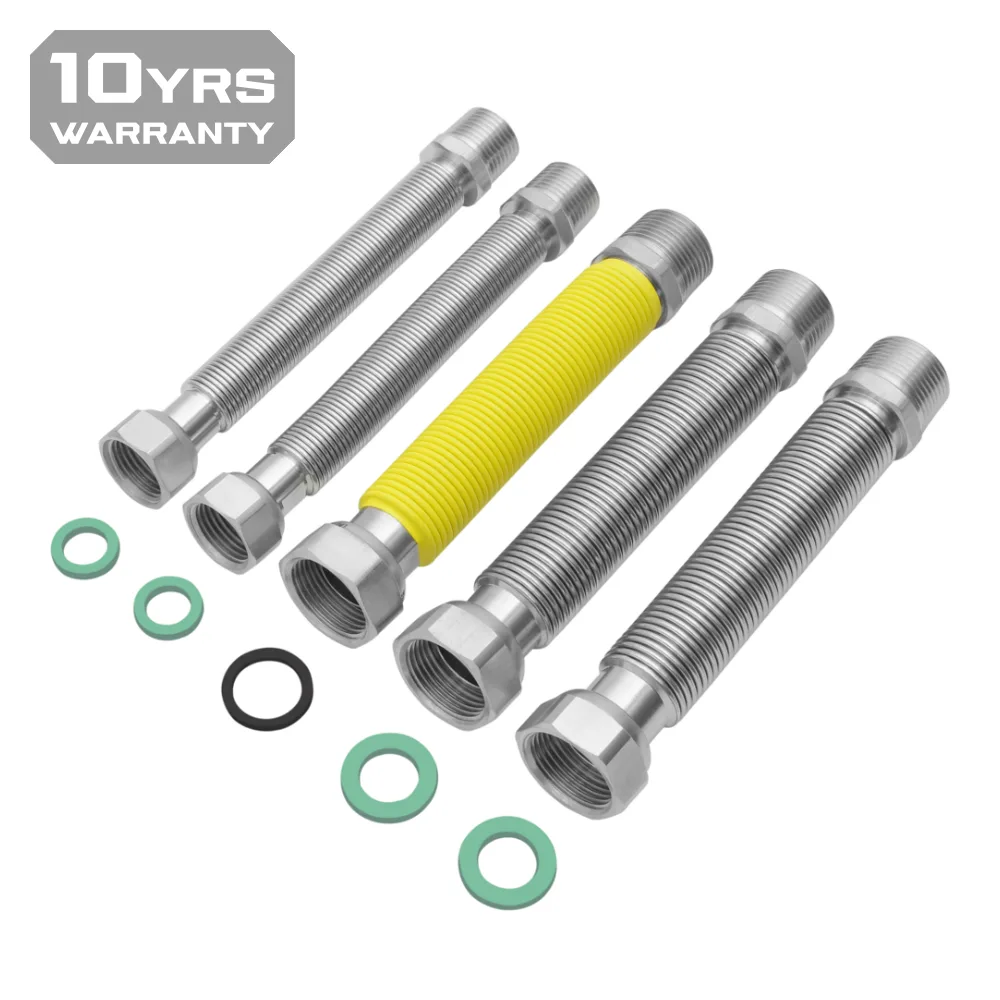

The installation kit consists of 5 flexible and extensible hoses: 1x gas connection (3/4″) and 4x water connections (two with a diameter of 1/2″ and two with a diameter of 3/4″). The hoses constitute a set needed for connection combi boiler and enable connections with a length between 150-300 mm. The set is equipped with appropriate seals for water and gas.
Set for connecting of dual-function boilers Flexo-Combo
CODE: FPG-COMBO
| DN | Diameter of the gas connection | Netto price (EUR): | Availability |
|---|---|---|---|
| 150-300 | 3/4" | 69,07 | standard |
To download:
EASY INSTALLATION
- Flexible and extensible structure of hoses makes connection of devices easier.
- Having a small bending radius they enable installation without reducing a cross-section of hose and consequently in reducing a flow of the working medium.
SAFETY
- Flexible and extensible hoses, both for gas and water connections are manufactured in accordance with the highest standards of workmanship, with particular emphasis on the safety and health of their users (in accordance with the EN ISO 10380 standard).
- Hoses for gas connections conform UNI 11353 standards.
LIFETIME
- Thermal treatment during the production process unifies the material from which the hoses are made, eliminates stress, and therefore extends their service life.
MAIN FEATURES:
Working medium:
- Gas hose: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane. Nominal pressure= 0,05 MPa, Ambient temperature = -20°C ÷ +120°C
- Water hoses: water. Nominal pressure= 0,7 MPa, Temperature range= -10°C ÷ +100°C
