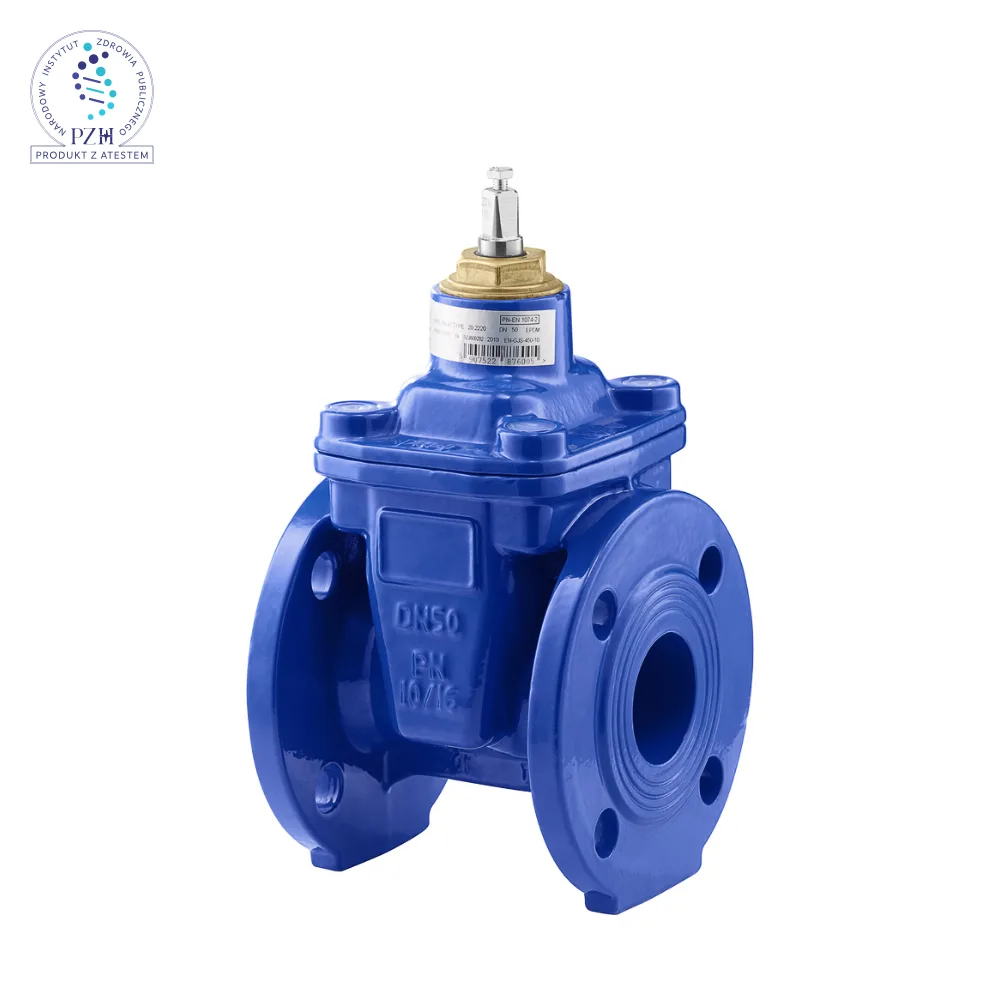

Gate valve for use in water installations. Body, wedge: ductile iron, spindle: stainless steel. Spindle seal by three O-rings. Brass stem seal bushing. Wedge nut made of brass.
Resilient flanged gate valve F4 – model A
CODE: 20.2220
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 50 | 104,65 | standard |
| 65 | 151,16 | standard |
| 80 | 162,79 | standard |
| 100 | 197,67 | standard |
| 125 | 279,07 | standard |
| 150 | 337,21 | standard |
The price does not contain price of handwheel! Prices per handwheel given under code 20.K
MAIN FEATURES:
Face-to-face length: F4
Execution in accordance with EN 1074-2
Flanged ends PN 10/16 compliant with EN 1092-2
Nominal pressure= PN 16
Temperature range= -10°C ÷ +70°C
Meets requirements of Pressure Equipment Directive – 2014/68/EU
PZH certified for potable water
It has a national declaration of performance
