Threaded fitting for making detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Due to the high permissible operating temperature, it is suitable for solar installations. It has a wide (min. 3.0 mm wall thickness) flat face. This allows a direct connection of flexible, corrugated hoses or any other connection with a flat gasket. Body: brass.

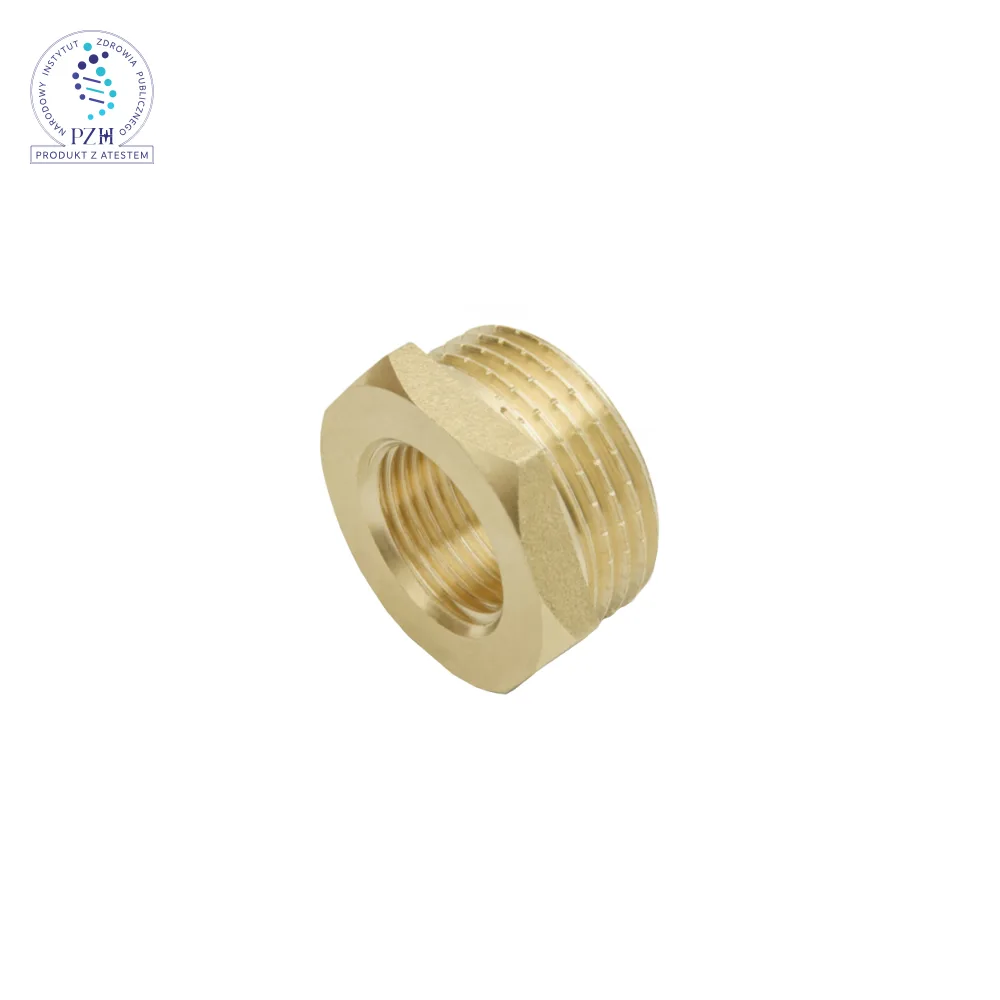

Reducing bushing M/F (flat face)
CODE: 287FD-K
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 3/4"x1/2" | 2,37 | standard |
| 1"x3/4" | 3,33 | standard |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Tmax = +250°C
Knurled external thread
End threaded ISO 228/1
Conform PN-EN 1254-2 standard
PZH certified for potable water
