Threaded fitting for making detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Body: brass (optionally – nickel-plated).

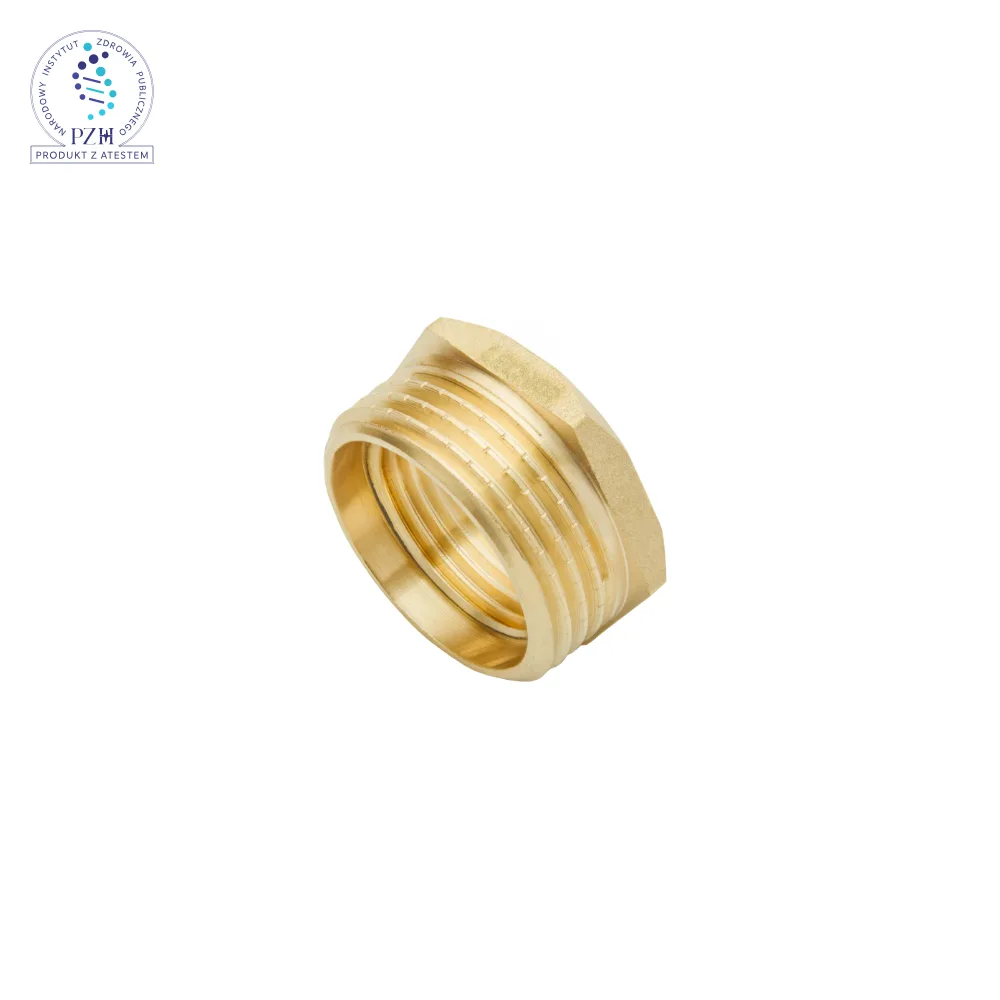

Reducing bushing M/F
CODE: 287
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 3/8"x1/4" | 0,41 | standard |
| 1/2"x1/4" | 0,88 | standard |
| 1/2"x3/8" | 0,73 | standard |
| 3/4"x3/8" | 1,43 | standard |
| 3/4"x1/2" | 0,95 | standard |
| 1"x1/2" | 2,33 | standard |
| 1"x3/4" | 1,57 | standard |
| 1"1/4x3/4" | 8,63 | standard |
| 1"1/4x1" | 3,15 | standard |
| 1"1/2x1" | 5,65 | standard |
| 1"1/2x1"1/4 | 2,81 | standard |
| 2"x1" | 21,70 | standard |
| 2"x1"1/4 | 15,35 | standard |
| 2"x1"1/2 | 10,84 | standard |
| 2"1/2x2" | 59,53 | on order |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= 0°C ÷ +95°C
Knurled external thread
Ends threaded ISO 228/1
Conform EN 1254-4 standard
PZH certified for potable water
