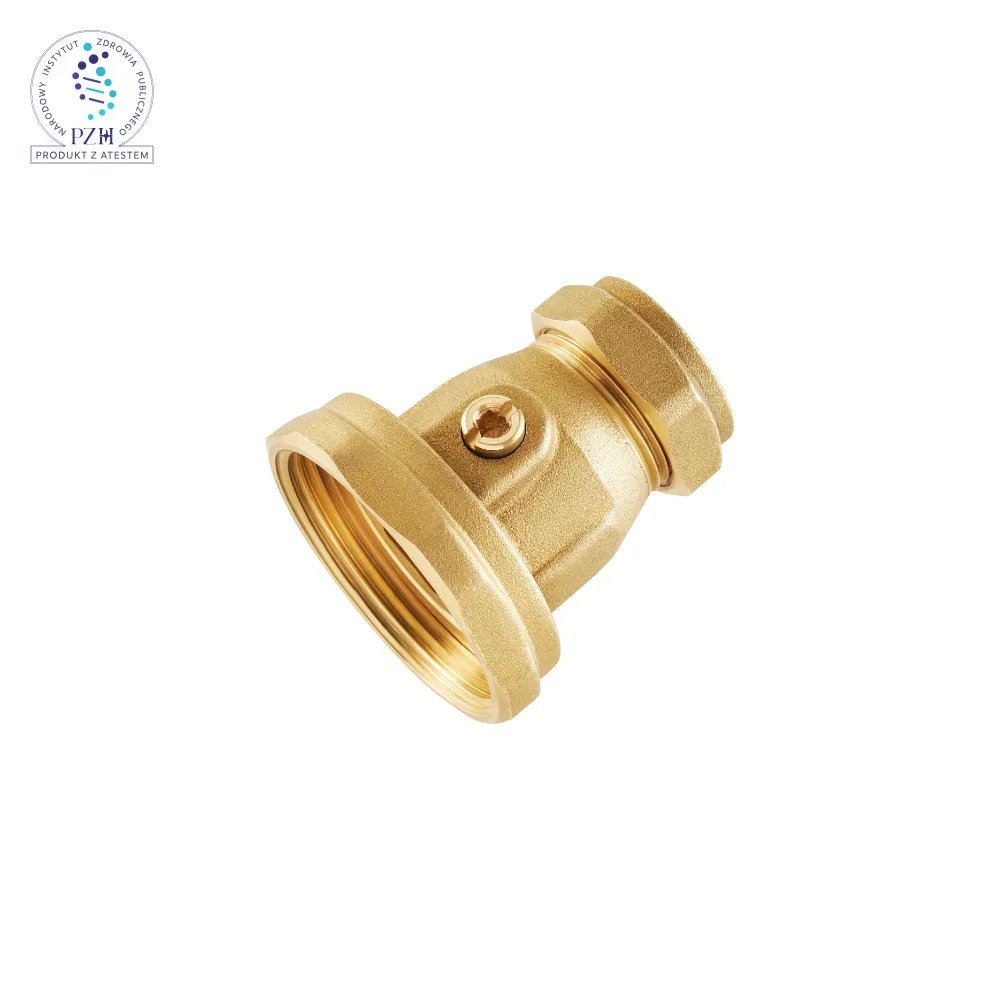

Ball valve with compression end for copper pipes and F swivel nut, full passage – for connecting circulation pumps. Body: CW 617N brass, spindle: CW 614N brass, ball: chrome-plated CW 614N brass, ball seals: PTFE, spindle seals: NBR rubber.
Pump connection ball valve with compression end
CODE: 305
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 22x1"1/2 | 1,0 | 15,79 | standard |
| 28x1"1/2 | 1,0 | 17,93 | standard |
MAIN FEATURES:
Temperature range= -10°C ÷ +90°C
Nominal pressure = 1,0 MPa
End F threaded ISO 228/1
Conform EN 13828 standard
PZH certified for potable water
