Valve that prevents the flow of water behind it if the inlet pressure drops below the value set on the pilote valve. Used, for example to secure the propper pressure in the fire protection pipeline by cutting off domestic water in case of fire. Body: ductile cast iron GJS-400 (flanged valves), gray cast iron GJL-250 (threaded valves), membrane: NBR nylon reinforced (flanged valve), EPDM nylon reinforced (threaded valve).

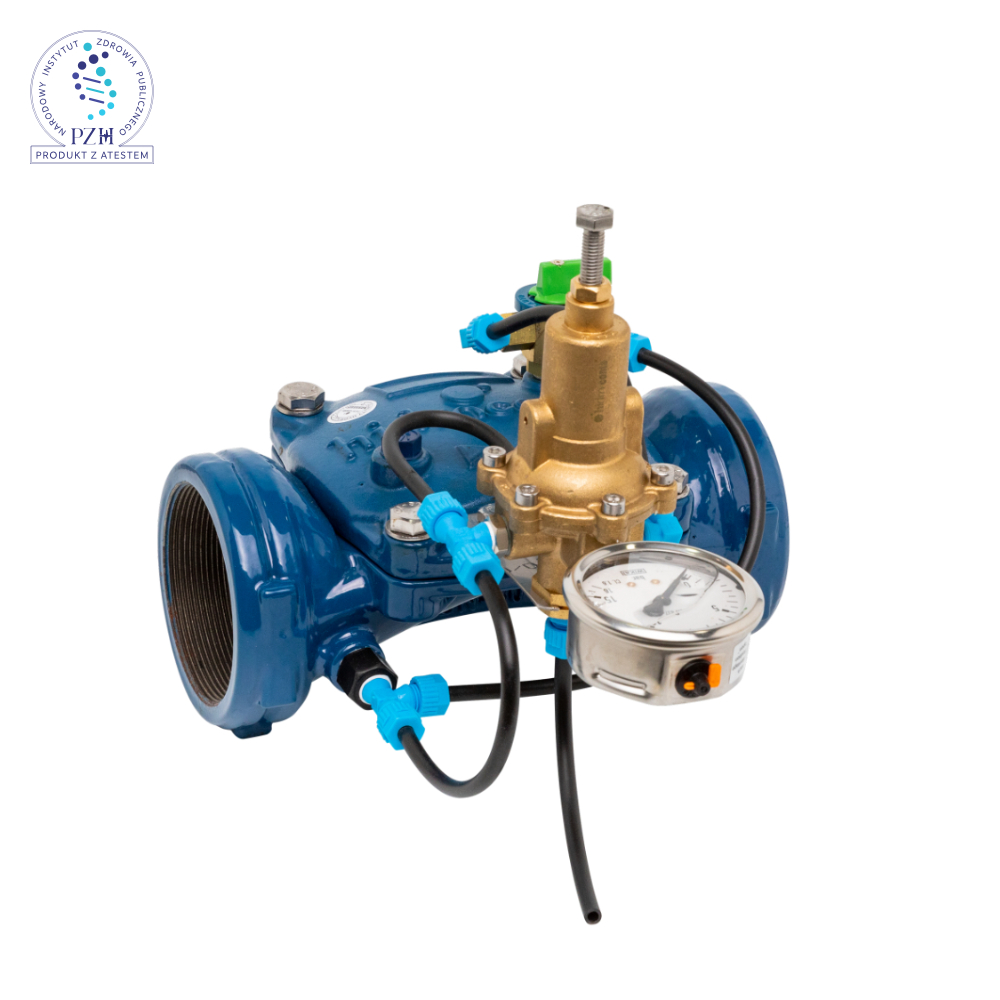

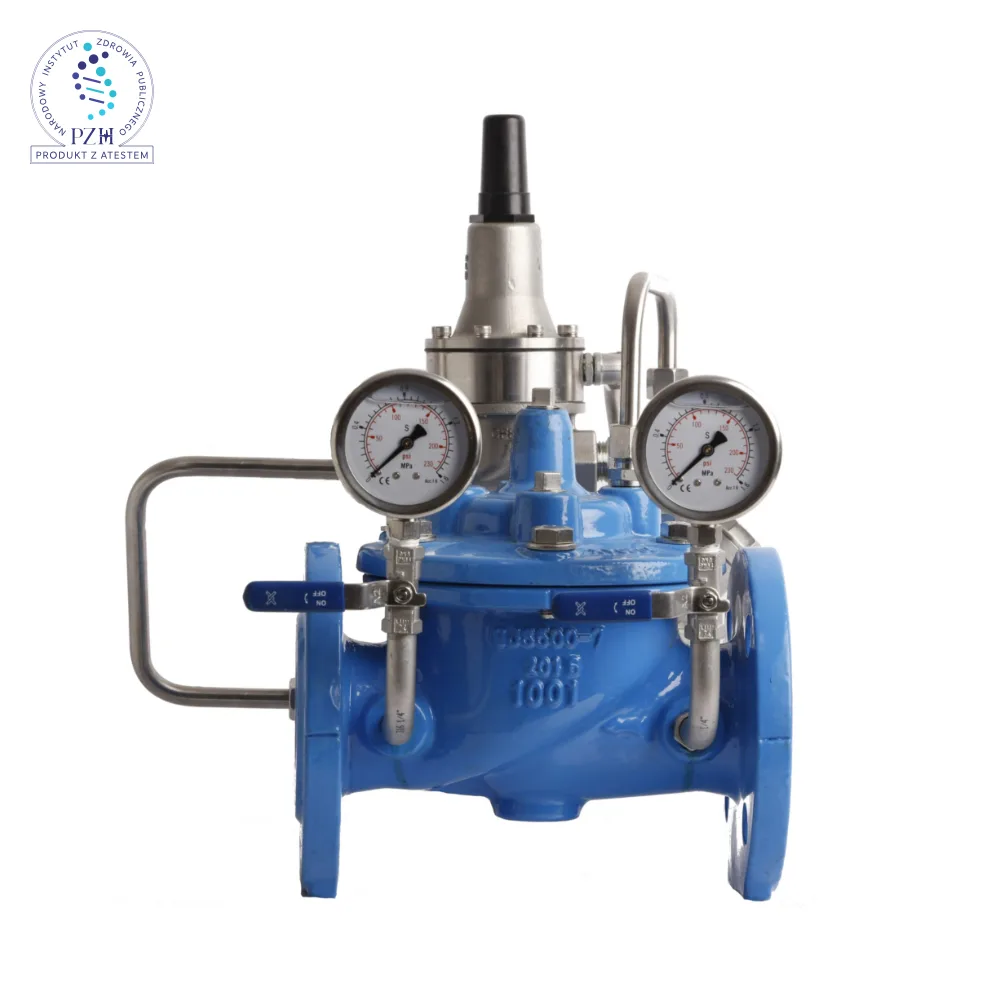

Priority valve
CODE: 12.103
| DN | End type | Netto price (EUR): | Availability |
|---|---|---|---|
| 3/4" | threaded | 1 253,49 | on order |
| 1" | threaded | 1 253,49 | on order |
| 1"1/4 | threaded | 1 359,77 | standard |
| 1"1/2 | threaded | 1 420,70 | standard |
| 2" | threaded | 1 489,07 | standard |
| 2"1/2 | threaded | 1 572,56 | on order |
| 50 | flanged | 2 506,98 | on order |
| 65 | flanged | 2 674,19 | on order |
| 80 | flanged | 3 084,42 | on order |
| 100 | flanged | 3 821,16 | on order |
| 150 | flanged | 5 241,86 | on order |
MAIN FEATURES:
Nominal pressure= 2,5 MPa (flanged valve)
Nominal pressure= 1,6 MPa (threaded valve)
Temperature range= +2°C ÷ +80°C (flanged valve)
Temperature range= +0,5°C ÷ +50°C (threaded valve)
Face-to-face lenght DIN3202-F1
Flange connection variants PN10, PN16, PN25
Conform EN 1074 standard
PZH certified for potable water
