Pressed fitting for multilayer pipes used to make non-detachable connections in water, heating and other installations in which a non-aggressive working medium flows. Body: brass; sleeve: stainless steel; o-ring: EPDM.

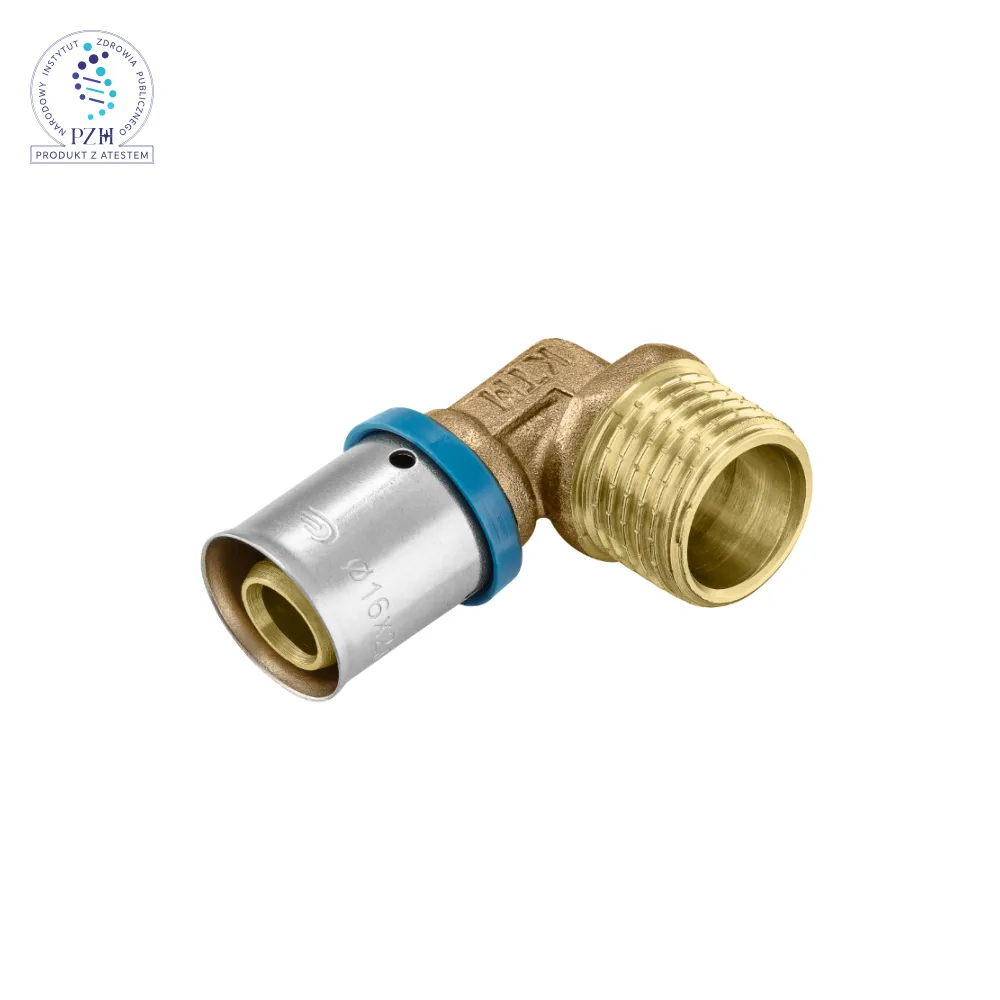

Press elbow with M threaded end
CODE: X153
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 1/2"x16 | 2,14 | standard |
| 3/4"x16 | 2,88 | standard |
| 1/2"x20 | 2,42 | standard |
| 3/4"x20 | 3,21 | standard |
| 3/4"x25 | 4,56 | standard |
| 1"x25 | 6,95 | standard |
MAIN FEATURES:
Nominal pressure= 1.0 MPa
Maximum temperature= +95°C
Applicable pressing jaw type: „U”
Works with PEX/AL/PEX and PERT/AL/PERT multilayer pipes
Ends threaded ISO 228/1
Meets requirements of EN 1254-8:2013-04 standard
PZH certified for potable water
