Balancing valve that combines the properties of a flow control valve and a device measuring this quantity in one body. Article 747OT is made of CC 754S brass and equipped with F/F ends. Suitable for use in both domestic and commercial HVAC installations.

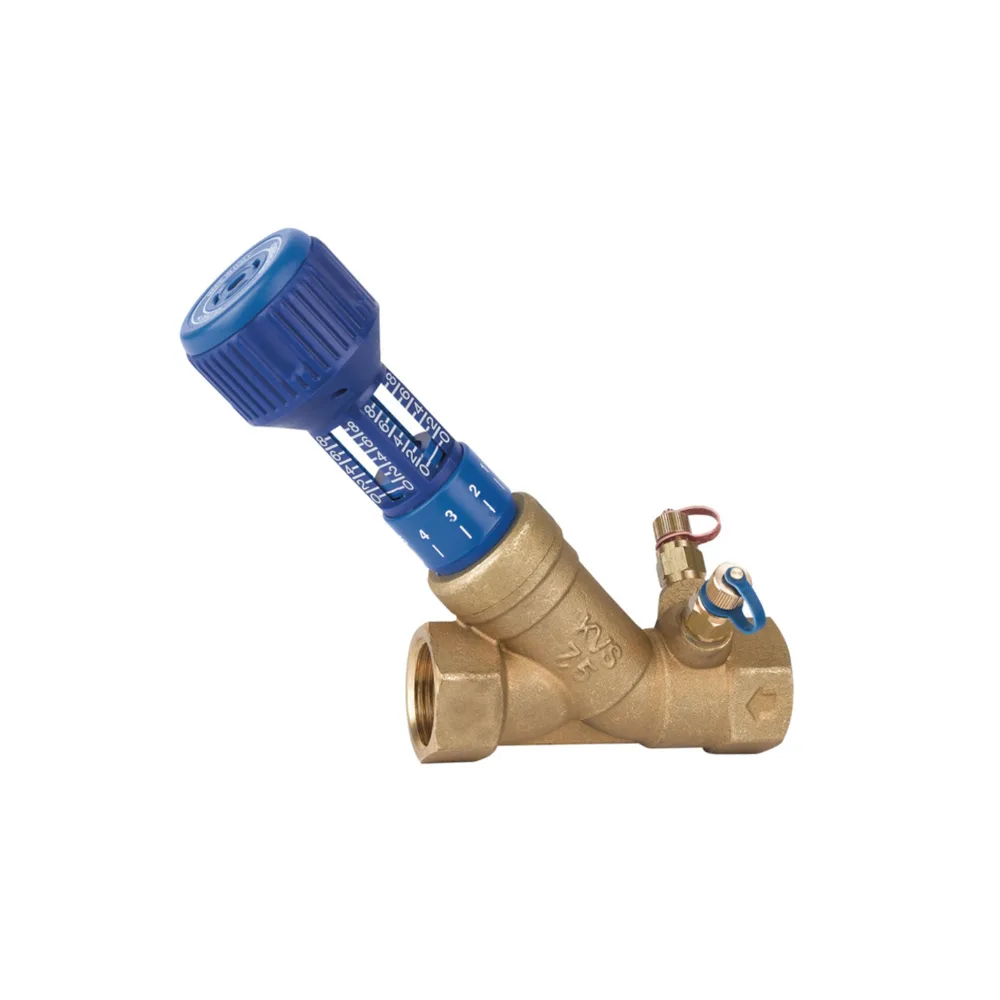

Manual balancing valve with fixed orifice and measuring ports
CODE: 747OT
| DN | Kvs [m³/h] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 1,75 | 85,81 | on order |
| 3/4" | 3,77 | 101,40 | on order |
| 1" | 6,96 | 110,93 | on order |
| 1"1/4 | 15,83 | 143,02 | on order |
| 1"1/2 | 21,05 | 202,79 | on order |
| 2" | 43,90 | 271,40 | on order |
- Fixed measurement orifice for high precision measurement, within ±5%, regardless of valve settings.
- Equipped with locking mechanism which after setting the valve to a given flow rate allow to close it and then reopen it, but always exactly to its original position.
- Allen key for locking the valve setting.
- Easy to read the valve setting at the scale of the knob at any angle.
- Valve plug seal made of EPDM to ensure tight shut-off of flow.
MAIN FEATURES:
Nominal pressure= 2,5 MPa
Temperature range= -10°C ÷ +120°C
Working medium: water, glycol and other non-aggressive liquids
Ends threaded ISO 7/1
Conform PN-91/M-75009 standard
