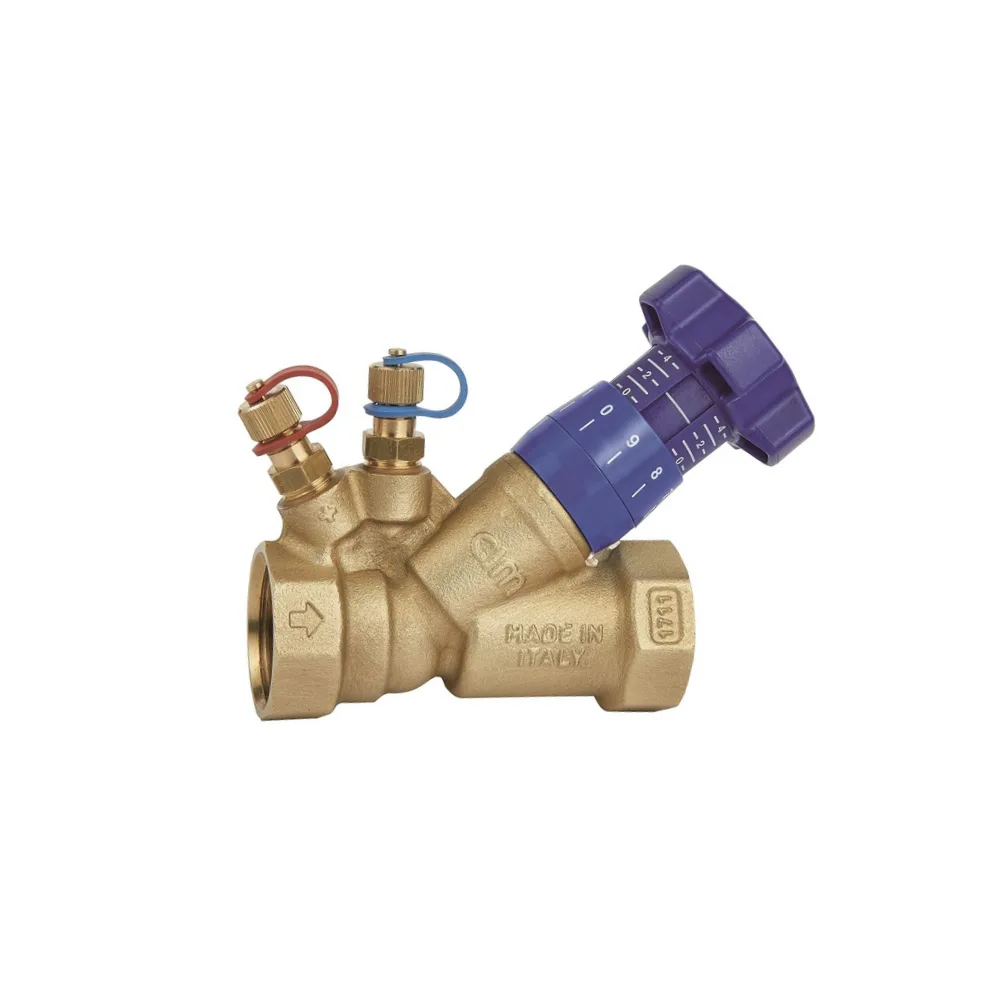

Manual balancing valve “BALANFLOW-HR” with fixed orifice and measuring ports

CODE: 746

Balancing valve that combines the properties of a flow control valve and a device measuring this quantity in one body. Article 746 is made of CW 602N brass and equipped with F/F ends. Suitable for use in both domestic and commercial HVAC installations.

DN Kv [m³/h] Netto price (EUR): Avability
1/2" 2,00  68,14 on order
3/4" 3,88  72,56 on order
1" 7,28  95,12 on order
1"1/4 13,39 133,02 on order
1"1/2 18,60 196,74 on order
2" 30,10 222,33 on order

  • Fixed measurement orifice for high precision measurement, within ±5%, regardless of valve settings.
  • Equipped with locking mechanism which after setting the valve to a given flow rate allow to close it and then reopen it, but always exactly to its original position.
  • Allen key for locking the valve setting.
  • Easy to read the valve setting at the scale of the knob at any angle.
  • Valve plug seal made of EPDM to ensure tight shut-off of flow.

MAIN FEATURES:

Nominal pressure= 2,5 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids


Ends threaded ISO 7/1

Conform PN-91/M-75009 standard
