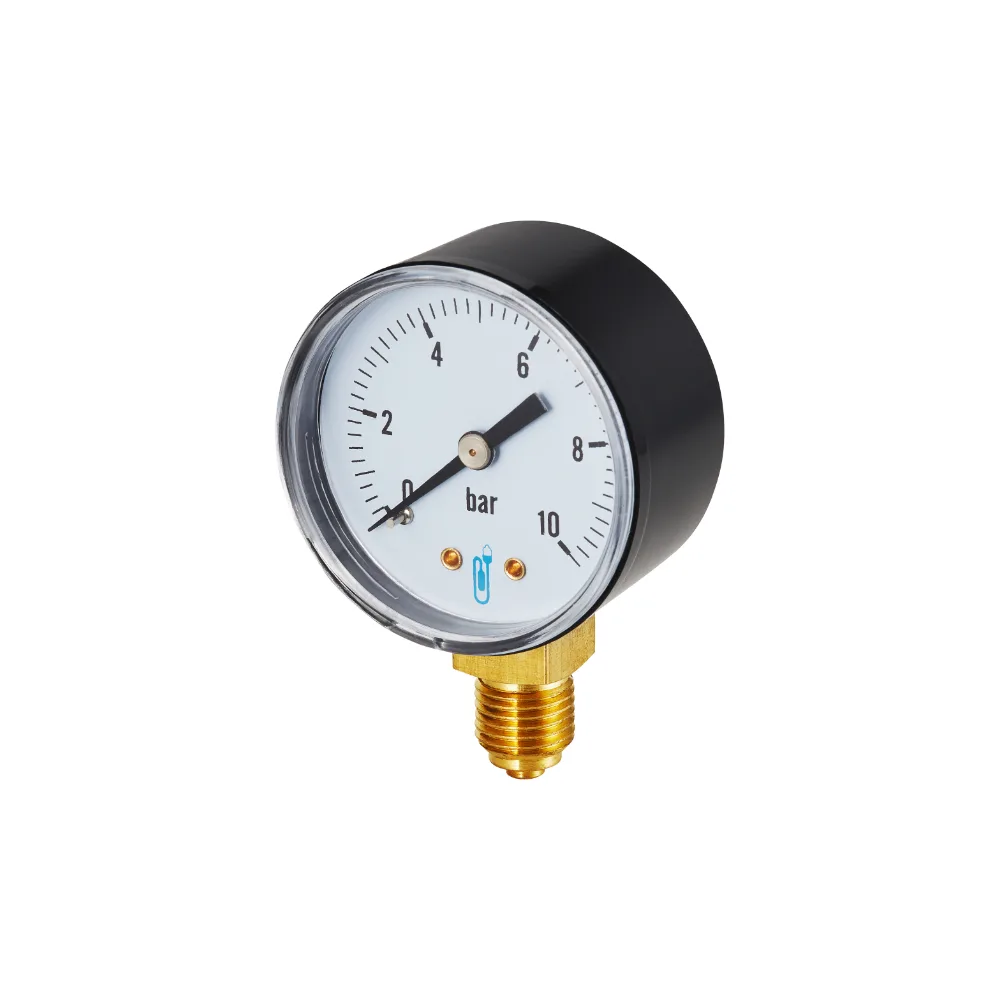

Gauge for measuring pressure in water and heating installations. This manometer has a radial connection. The diameter of the disc is 50 mm. Body and disc are made of painted steel, and the threaded connection (male) is made of CW617N brass.
Manometer ø 50mm – radial connection
CODE: 509-R
| DN | Pressure range [bar] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/4" | 0÷10 | 7,79 | standard |
MAIN FEATURES:
Pressure range= 0 ÷ 1 MPa (0 ÷ 10 bar)
End M threaded ISO 7/1
Meets requirements EN 837-1:2000P standard
