Flanged ball valve with long body and full bore. Body: gray cast iron GJL-250, ball: chrome-plated CW 617N brass, ball seals: PTFE, spindle: brass CW 617N.

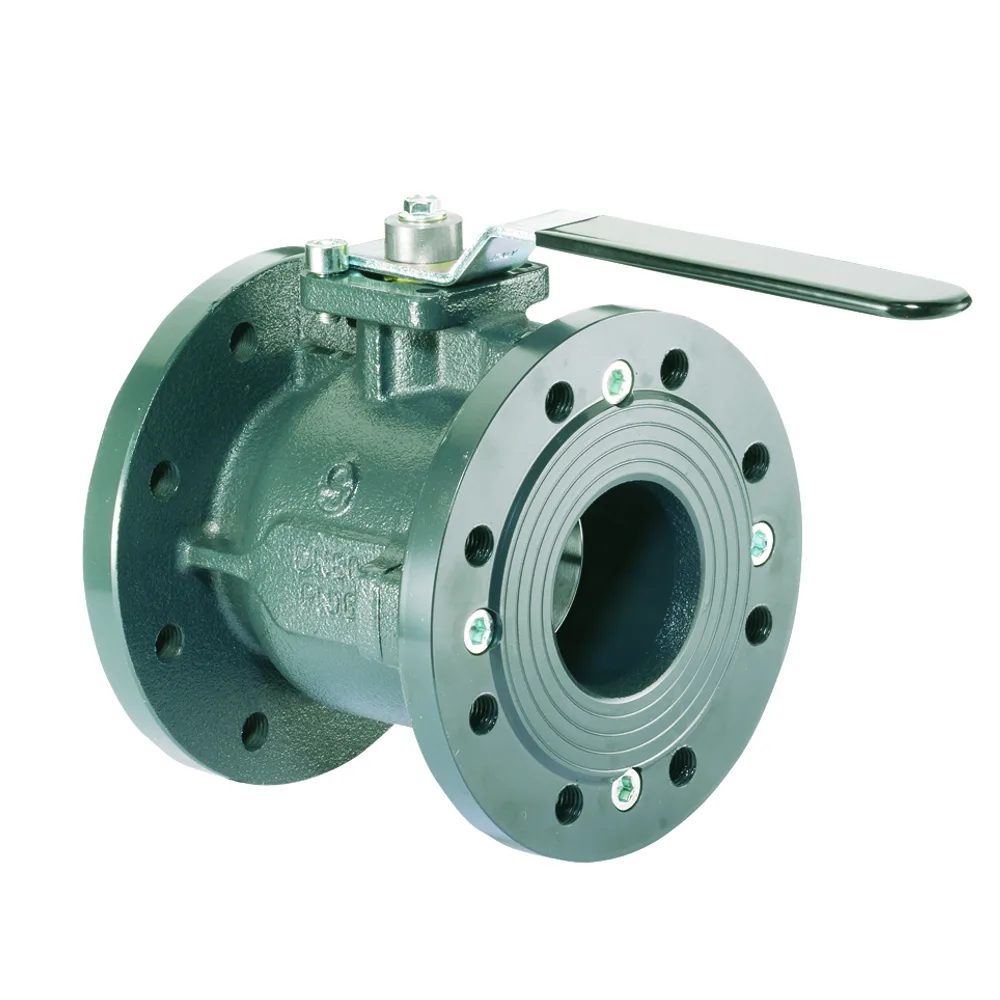

Long-body flanged ball valve
CODE: 2000w
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 32 | 23,26 | in stock |
MAIN FEATURES:
Nominal pressure= 1.6 MPa
Temperature range= -10°C ÷ +150°C
Ends flanged PN10
Actuator connection acc. ISO 5211
Meets requirements of Pressure Equipment Directive – 2014/68/EU
