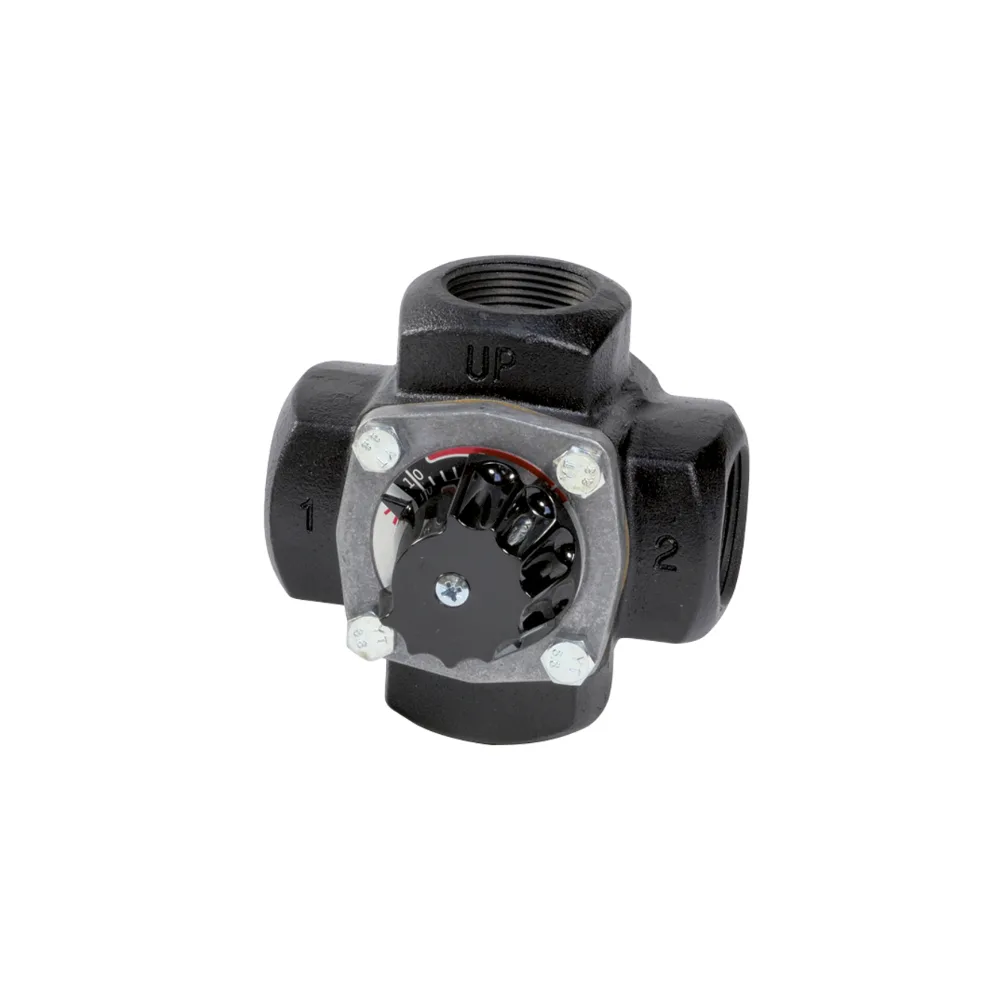

Four-way mixing valve “QUATROMIX”

CODE: 450C

Four-way mixing valve. Body made of cast iron, mixer made of bronze, spindle made of brass CW617N.

DN Kv [m³/h] Netto price (EUR): Availability
1"1/2 31 152,09 on order
2" 41 195,12 on order

MAIN FEATURES:

Nominal pressure= 0,6 MPa

Temperature range= 0°C ÷ +90°C

Ends F threaded ISO 228/1

Working medium: water, glycol, other non-aggressive liquids
