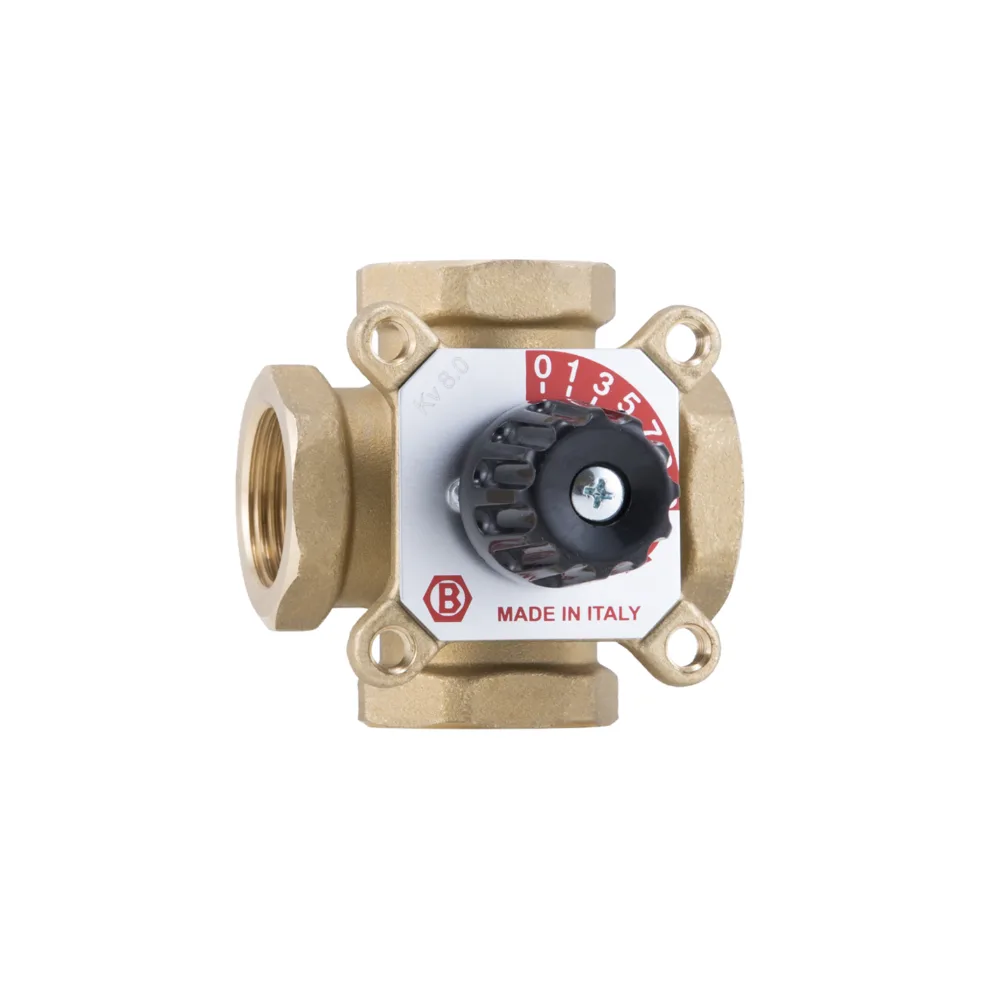

Four-way mixing valve. Body, cover, spindle and mixer (heart) made of CW617N brass, EPDM seals.
Four-way mixing valve “QUATROMIX”
CODE: 450M
| DN | Kv [m³/h] | Netto price (EUR): | Availability |
|---|---|---|---|
| 3/4" | 4 | 72,79 | on order |
| 1" | 8 | 84,19 | standard |
| 1"1/4 | 15 | 110,23 | standard |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= 0°C ÷ +110°C
Ends F threaded ISO 228/1
Working medium: water, glycol, other non-aggressive liquids
