Three-layer gas connection hose. Designed for connecting home appliances to natural gas installation. Certified on complience with the EN 14800 standard, CE marked. It can be used in fire-risk facilities. Hose: austenitic steel AISI304L, braiding: AISI304, outer sheath: fire-resistant PVC, connections: stainless steel AISI304.

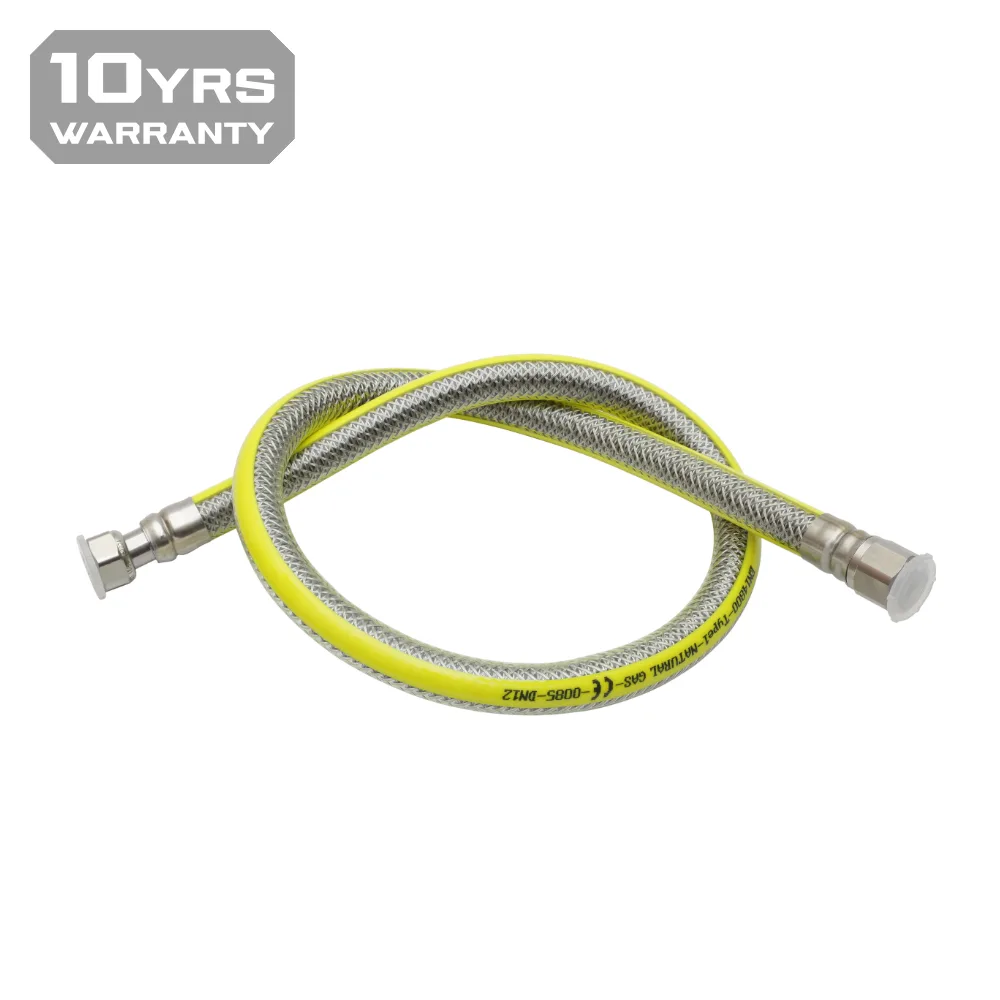

Flexible gas connection hose Flexo-Gas – F swivel nut and F fixed nut connections
CODE: FPG1
| DN | Hose length [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 500 | 12,33 | standard |
| 1/2" | 750 | 14,88 | standard |
| 1/2" | 1000 | 17,21 | standard |
| 1/2" | 1250 | 19,77 | standard |
| 1/2" | 1500 | 21,86 | standard |
| 1/2" | 2000 | 26,98 | standard |
To download:
Conform EN 14800:2007 standard
Certified by DVGW Cert GmbH
Made in UE
10 years warranty

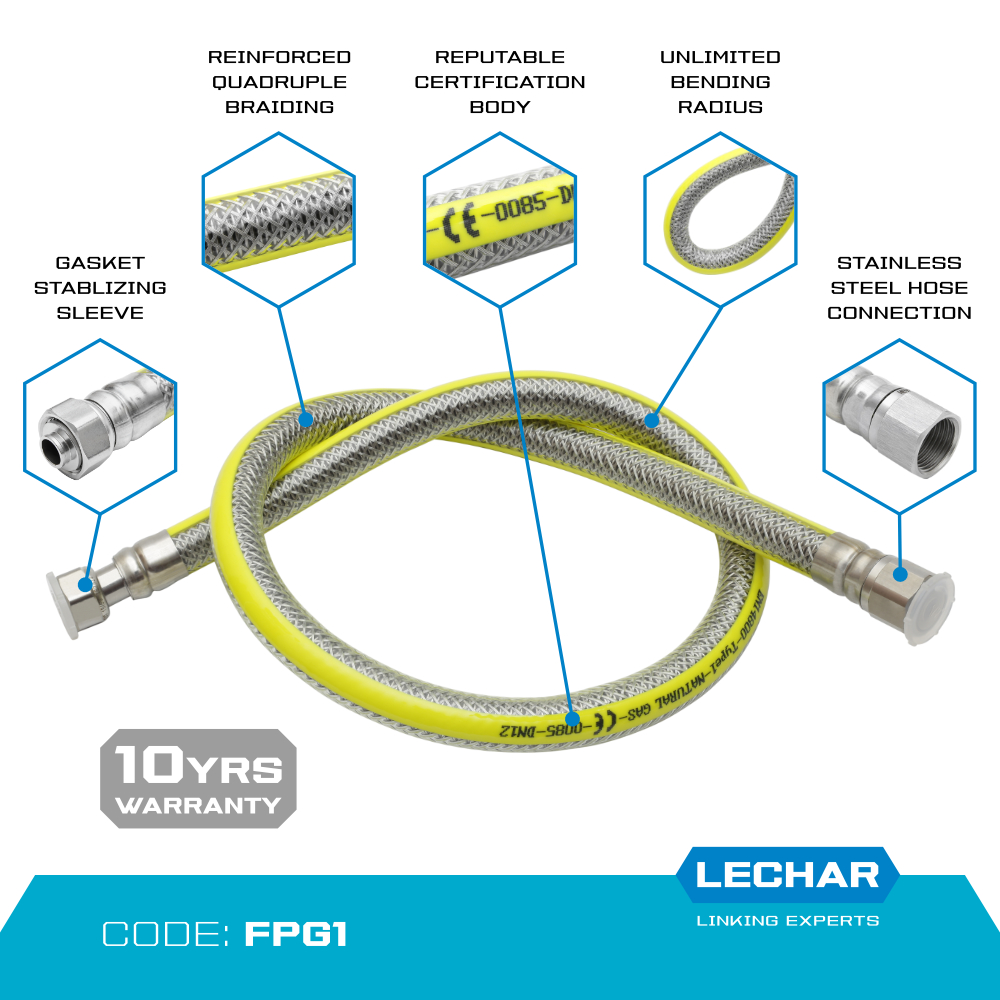

MAIN FEATURES:
Type 1 gas hose – with no limited bending radius
Stainless steel ends: F threaded with a swivel nut (connection to the installation), F threaded with a fixed nut (connection to the device)
Reinforced quadruple braiding
Working medium: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane
