Three-layer gas connection hose. Designed for connecting home appliances to natural gas installation. Certified on complience with the EN 14800 standard, CE marked. It can be used in fire-risk facilities. Hose: austenitic steel AISI304L, braiding: AISI304, outer sheath: fire-resistant PVC, connections: stainless steel AISI304.
Flexible gas connection hose Flexo-Gas – F fixed nut and bayonet connections
CODE: FPG1-Z
| DN | Hose length [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 500 | 46,05 | standard |
| 1/2" | 750 | 48,37 | standard |
| 1/2" | 1000 | 50,00 | standard |
| 1/2" | 1250 | 54,19 | standard |
| 1/2" | 1500 | 56,98 | standard |
| 1/2" | 2000 | 61,86 | standard |
To download:
Hose certified on complience with EN 14800 standard, CE marked.
Valve certified on complience with EN 15069 standard
Hose and valve certified by the renowned German institute DVGW Cert GmbH
Made in the EU
10 years warranty

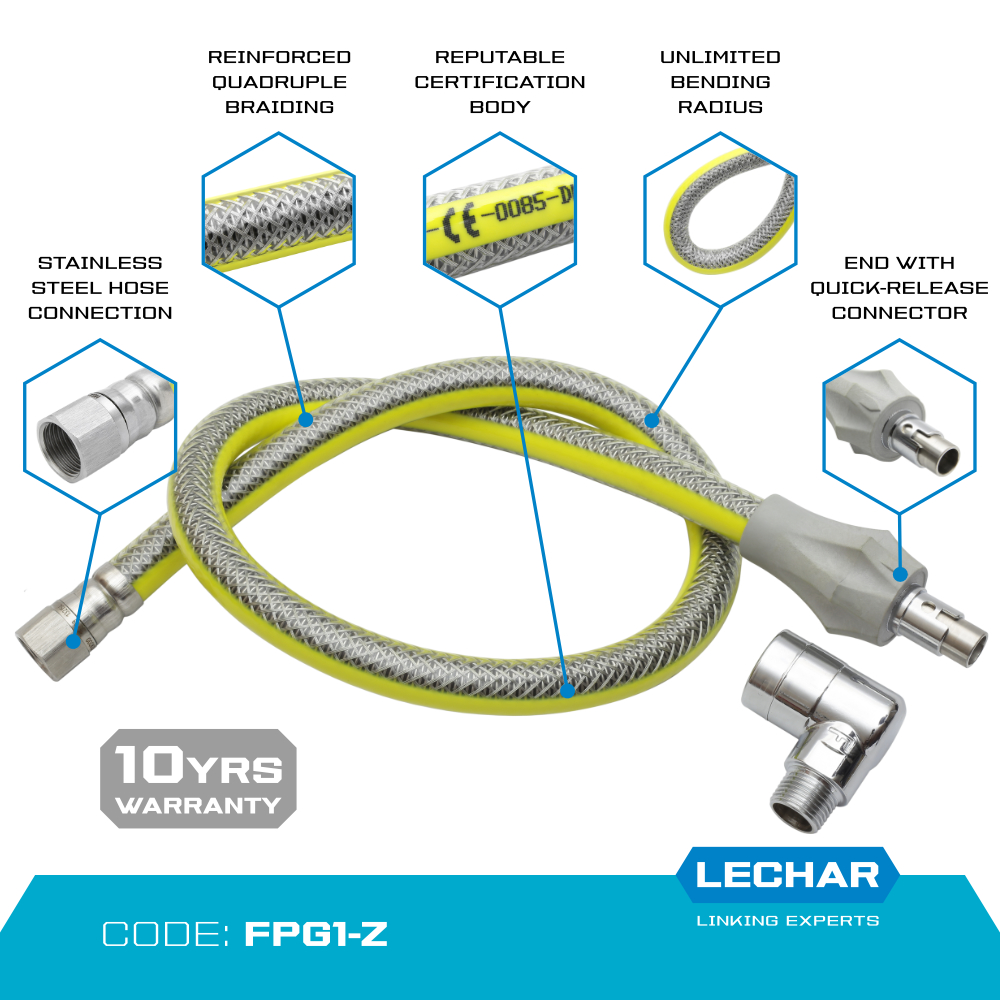

MAIN FEATURES:
Type 1 hose – no limited bending radius
Hose connections: fixed F threaded nut and bayonet connector to the valve
Valve connections: M thread and quick hose coupling, according to DIN 3383-1
Valve equipped with a thermal cut-off insert
Reinforced quadruple braiding of the hose
Working medium: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane
