Flexo-ExTap are flexible and extensible corrugated hoses. Made of stainless steel, dedicated for connecting utility water to basin-standing faucets. Hose: AISI316L austenitic steel, faucet end: AISI304 stainless steel; pipeline nut: nickel-plated brass, seal: NBR. F threaded swivel nut to the pipeline (flat gasket), M threaded end to the faucet (2 o-rings).

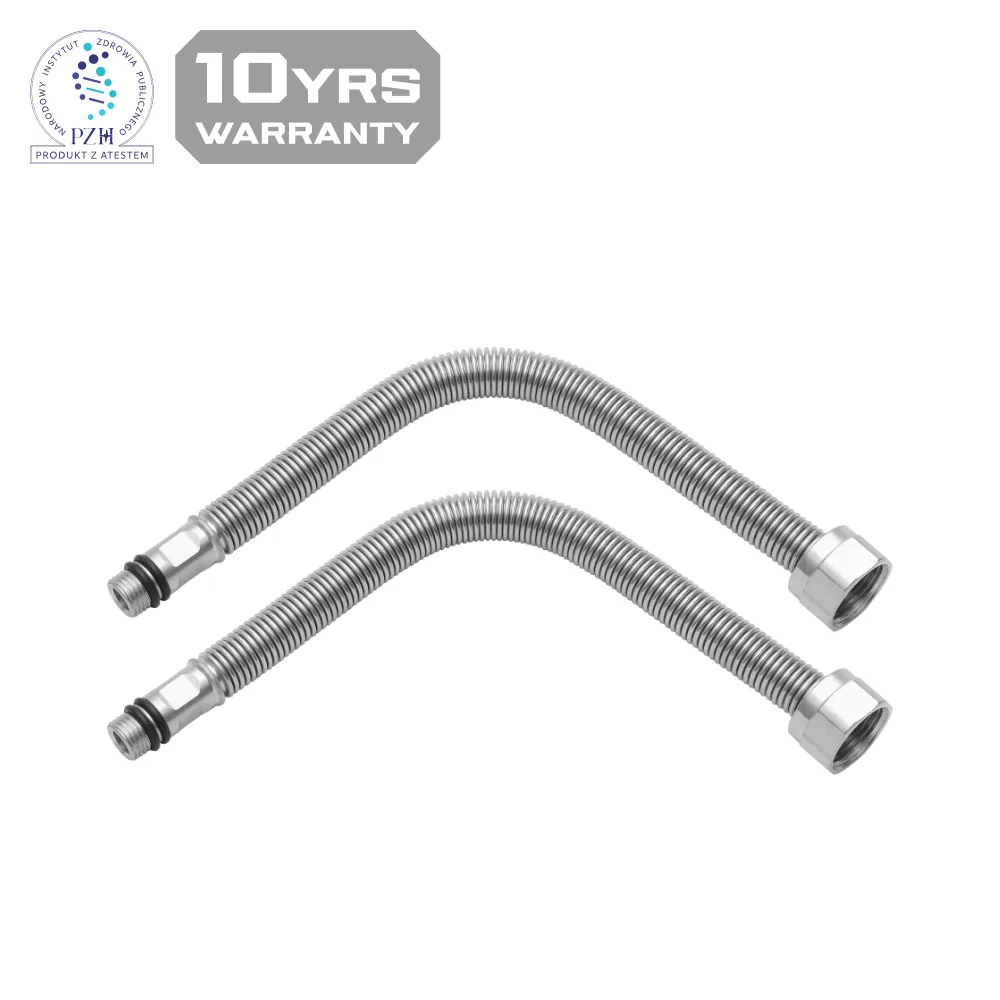

Flexible and extensible hoses Flexo-ExTap for connecting basin-standing faucets – set of 2 pcs.
CODE: FP-ExTap
| DN | Length range [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 3/8" | 150-300 | 18,53 | standard |
| 3/8" | 200-400 | 19,26 | standard |
| 3/8" | 250-500 | 19,77 | standard |
| 3/8" | 300-600 | 20,53 | standard |
| 3/8" | 400-800 | 23,88 | standard |
| 3/8" | 500-1000 | 28,14 | standard |
To download:
Conform EN ISO 10380 standard
Made in EU
10 years warranty
PZH certified for potable water
- Approved for use in contact with potable water – entirely made of stainless steel – no rubber tube inside, no nickel coating
- They can be formed, permanently maintaining given shape
- They extend to 100% of their original length
- No reduction in hose cross-section with small bending radius
- Double o-ring for better tightness
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= -10°C ÷ +100°C
Ends: F threaded swivel nut / M threaded (M10 size) to tap
Working medium: water
