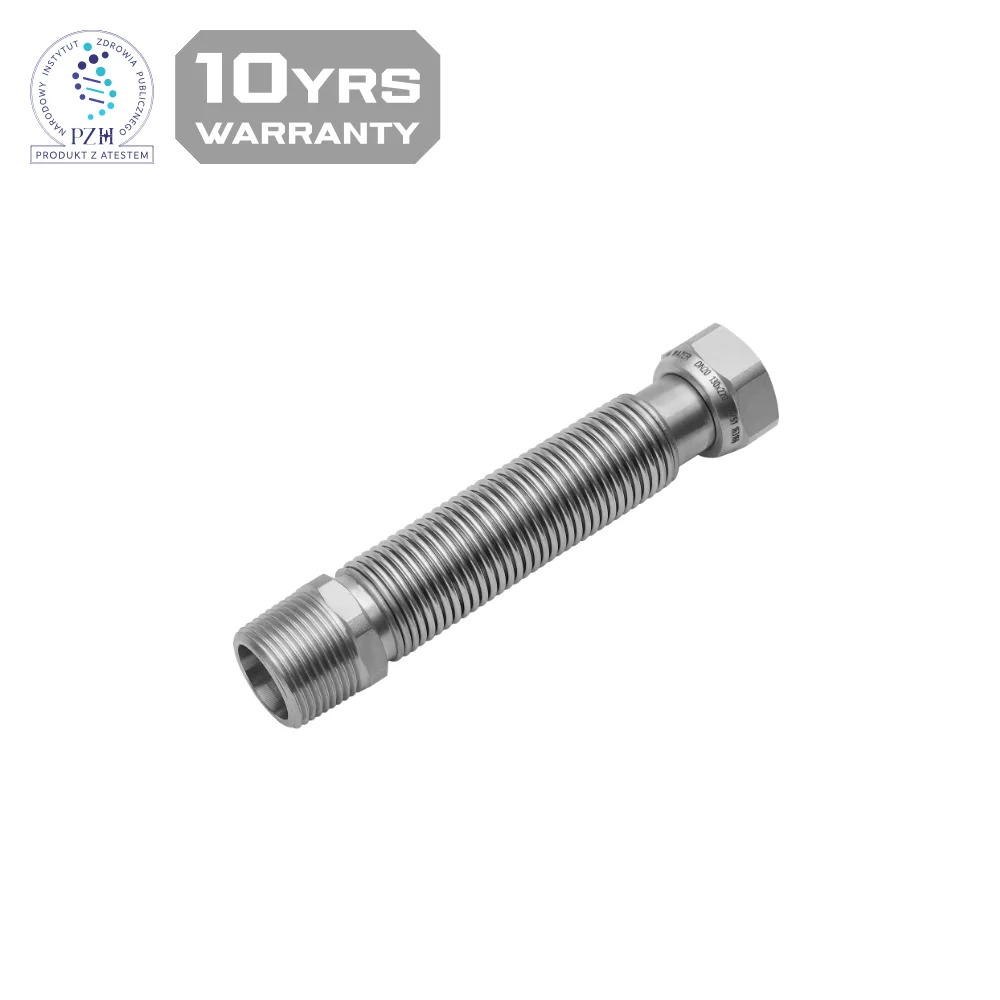

Flexible and extensible water connection hose is an alternative to rigid connections. Applications: sanitary installations, radiator connections, water connections for boilers and water heaters, water tanks and reservoirs, etc. Hose: AISI304L stainless steel, ends M threaded – AISI304 stainless steel, ends F threaded with sviwel nut – brass, gasket: fiber.
Flexible and extensible connection hose for sanitary and HVAC installations – Flexo-ExDrop
CODE: FPW3
| DN | DN [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 90-140 | 8,09 | standard |
| 1/2" | 130-220 | 8,72 | standard |
| 1/2" | 220-420 | 10,07 | standard |
| 1/2" | 300-600 | 11,56 | standard |
| 1/2" | 500-1000 | 14,02 | standard |
| 1/2" | 750-1500 | 16,67 | standard |
| 1/2" | 1000-2000 | 19,86 | standard |
| 1/2"x3/4" | 90-140 | 9,58 | standard |
| 1/2"x3/4" | 130-220 | 10,33 | standard |
| 1/2"x3/4" | 220-420 | 11,86 | standard |
| 1/2"x3/4" | 300-600 | 13,49 | standard |
| 3/4" | 90-140 | 12,19 | standard |
| 3/4" | 130-220 | 12,93 | standard |
| 3/4" | 220-420 | 14,79 | standard |
| 3/4" | 300-600 | 16,98 | standard |
| 3/4" | 500-1000 | 20,70 | standard |
| 3/4" | 750-1500 | 27,44 | standard |
| 3/4" | 1000-2000 | 33,95 | standard |
| 1" | 130-220 | 23,26 | standard |
| 1" | 220-420 | 26,51 | standard |
| 1" | 300-600 | 29,53 | standard |
| 1" | 500-1000 | 36,05 | standard |
| 1"1/4 | 130-220 | 66,28 | standard |
| 1"1/4 | 220-420 | 73,49 | standard |
| 1"1/4 | 250-500 | 75,58 | standard |
| 1"1/4 | 300-600 | 79,53 | standard |
| 1"1/4 | 500-1000 | 95,35 | standard |
| 1"1/2 | 130-220 | 103,95 | on order |
| 1"1/2 | 220-420 | 112,33 | on order |
| 1"1/2 | 250-500 | 115,12 | on order |
| 1"1/2 | 300-600 | 120,93 | on order |
| 1"1/2 | 500-1000 | 145,12 | on order |
| 2" | 130-200 | 147,21 | on order |
| 2" | 220-420 | 156,51 | on order |
| 2" | 500-1000 | 158,60 | on order |
To download:
Conform EN ISO 10380 standard
Made in EU
10 years warranty
PZH certified for potable water
MAIN FEATURES:
Pmax = 0,8 MPa (1/2″), Pmax = 0,7 MPa (3/4″), Pmax = 0,6 MPa (1″), Pmax = 0,35 MPa (1″1/4), Pmax = 0,25 MPa (1″1/2), Pmax = 0,2 MPa (2″)
Temperature range= -10°C ÷ +100°C
Ends M threaded/F threaded with sviwel nut
Working medium: water, glycol, oil
