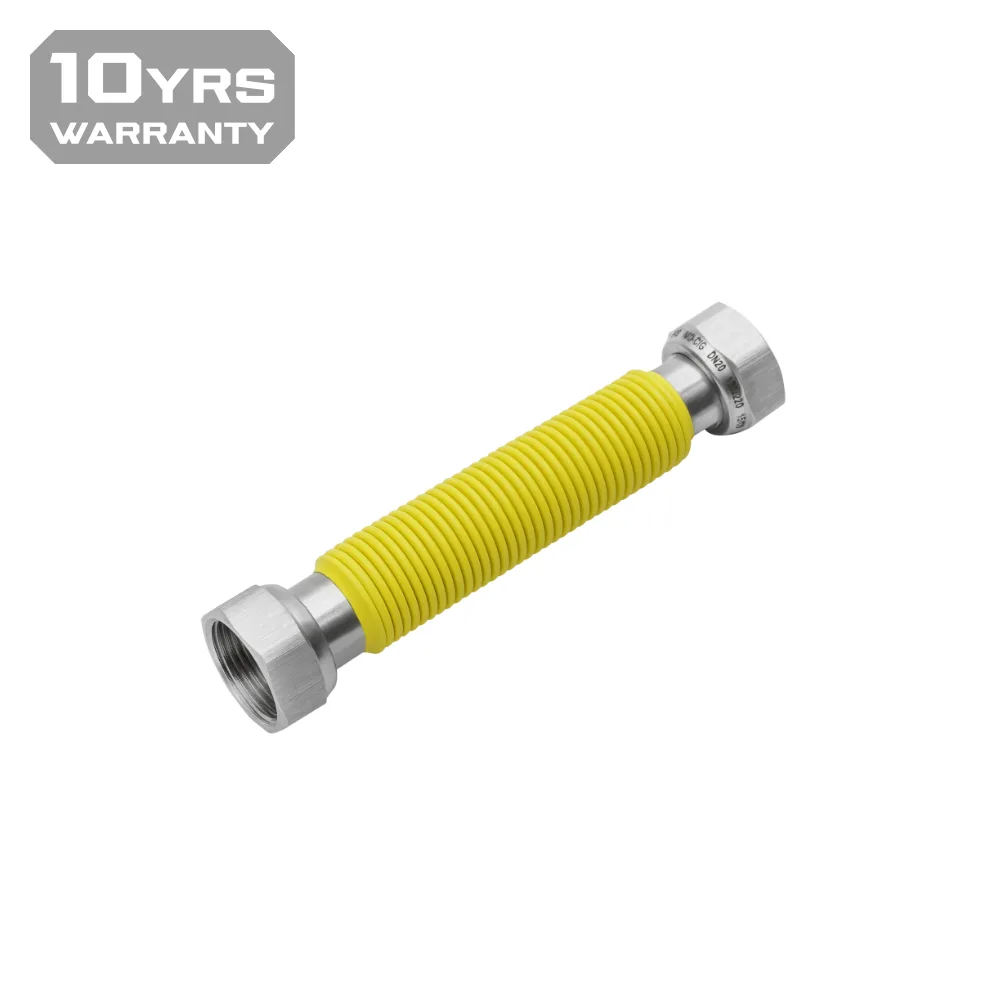

Flexible and extensible connection hose for gas with F/F ends – Flexo-ExGas

CODE: FPG4

Flexible and extensible hose for connecting all permanently installed gas home appliances to the gas installation. Hose: AISI 304L austenitic steinless steel, outer coating – polyolefin, ends: AISI 304 stainless steel, gasket: NBR.

DN Length range [mm] Netto price (EUR): Availability
1/2" 90-140   9,65 standard
1/2" 130-220  10,37 standard
1/2" 220-420  12,19 standard
1/2" 250-500  13,72 on order
1/2" 300-600  15,12 on order
1/2" 500-1000  19,30 on order
1/2" 750-1500  25,12 on order
1/2" 1000-2000  31,16 on order
1/2"x3/4" 90-140  12,19 on order
1/2"x3/4" 130-220  12,93 standard
1/2"x3/4" 220-420  14,88 standard
3/4" 90-140  14,42 standard
3/4" 130-220  15,37 standard
3/4" 220-420  17,21 standard
3/4" 250-500  18,65 standard
3/4" 300-600  20,44 standard
3/4" 500-1000  26,51 standard
3/4" 750-1500  34,42 standard
3/4" 1000-2000  40,00 standard
1" 130-220  27,91 standard
1" 220-420  32,09 standard
1" 300-600  36,74 standard
1" 500-1000  47,44 standard
1" 750-1500  61,86 on order
1" 1000-2000  72,79 on order

Conform UNI 11353 standard

Made in UE

10 years warranty


MAIN FEATURES:

Nominal pressure= 0,05 MPa

Ambient temperature range = -20°C ÷ +120°C

Ends F threaded with swivel nut/F threaded with swivel nut, made of stainless steel

Working medium: high-methane natural gas, nitrogen-rich natural gas, propane, propane-butane
