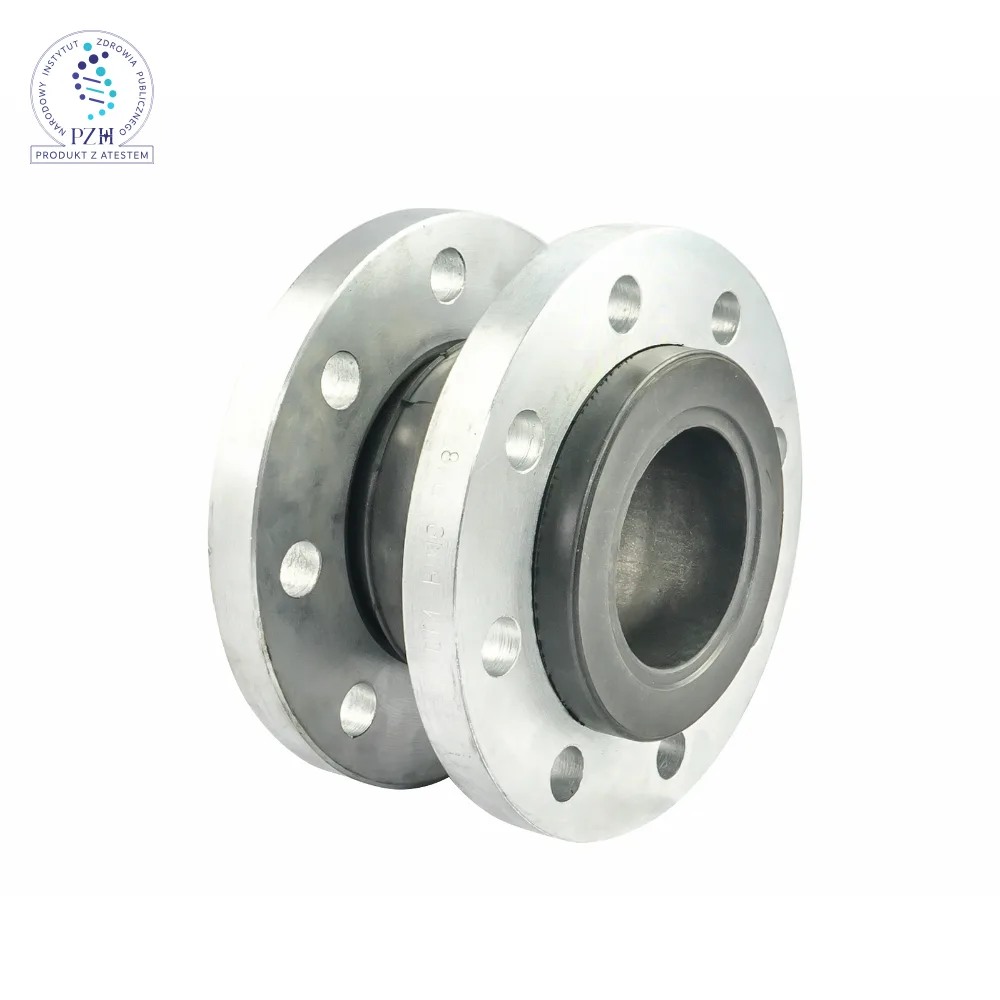

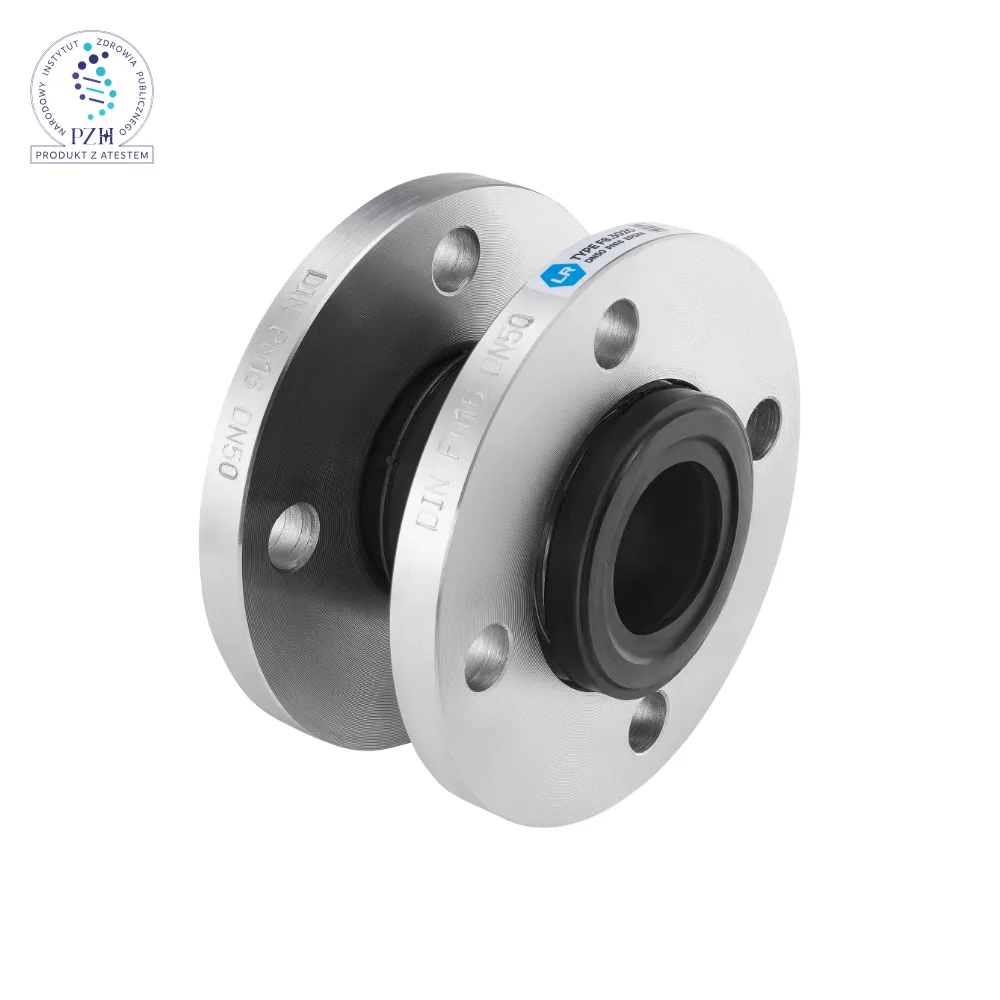

Flanged elastomeric compensator, single-spherical

CODE: F8.3020

Elastomer compensator for water and heating installations. Bellows: EPDM with a nylon reinforcing layer, flanges: galvanized carbon steel.

DN Netto price (EUR): Availability
32     69,07 on order
40     69,07 on order
50     50,93 standard
65     62,56 standard
80     75,58 standard
100     88,60 standard
125    127,21 standard
150    171,86 standard
200    348,84 on order
250    516,05 on order
300    627,44 on order
350    938,37 on order
400  1 182,09 on order
450  1 307,44 on order
500  1 811,40 on order
600  2 552,33 on order

MAIN FEATURES:

Flanged ends PN 10/16 compliant with EN 1092-1

Nominal pressure= PN 16 (for DN 32÷300), PN 10 (for DN 350÷600)

Temperature range= -15°C ÷ +115°C

Working medium: water

Vacuum capacity 700 mm/Hg

Meets requirements of Pressure Equipment Directive – 2014/68/EU

PZH certified for potable water

It has a national declaration of performance
