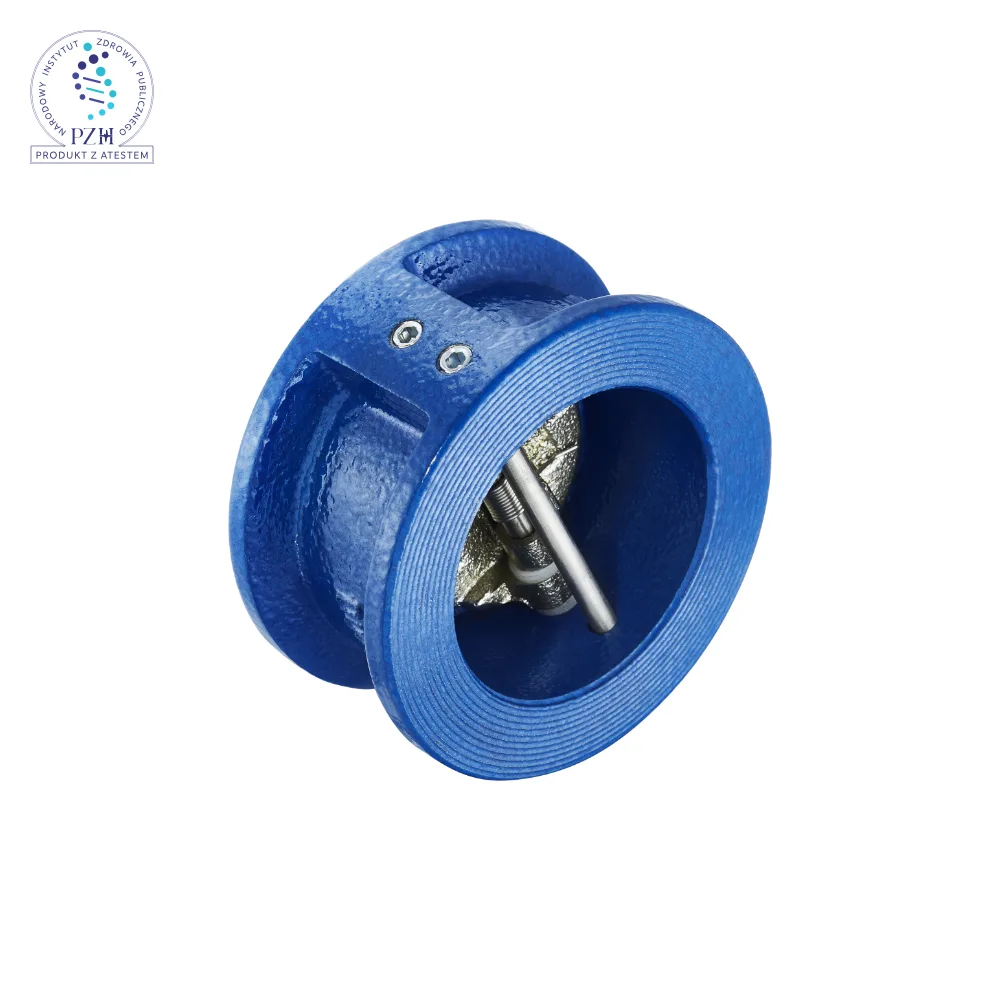

Dual-plate wafer check valve

CODE: D6.1210

Dual-plate check valve is used to prevent the working medium from flowing back in the pipeline. Body: gray cast iron GJL-250, disc: ductile iron GJS-400, spring: AISI 304 stainless steel, seal: NBR.

DN Netto price (EUR): Availability
50     70,23 standard
65     76,05 standard
80     93,72 standard
100    117,21 standard
125    146,51 standard
150    204,88 on order
200    333,95 on order
250    468,60 on order
300    684,42 on order
350  1 348,60 on order
400  1 933,02 on order
450  2 577,21 on order
500  3 455,81 on order
600  4 275,81 on order

MAIN FEATURES:

Nominal pressure= 1,6 MPa (DN50 ÷ DN300)

Nominal pressure= 1,0 MPa (DN350 ÷ DN600)

Temperature range= -10°C ÷ +80°C

Wafer ends for PN10/16/25 flanges

Face-to-face lenght acc. to EN558-16 (or EN558-50)

Meets requirements of Pressure Equipment Directive 2014/68/EU

PZH certified for potable water

EPDM sealing on request
