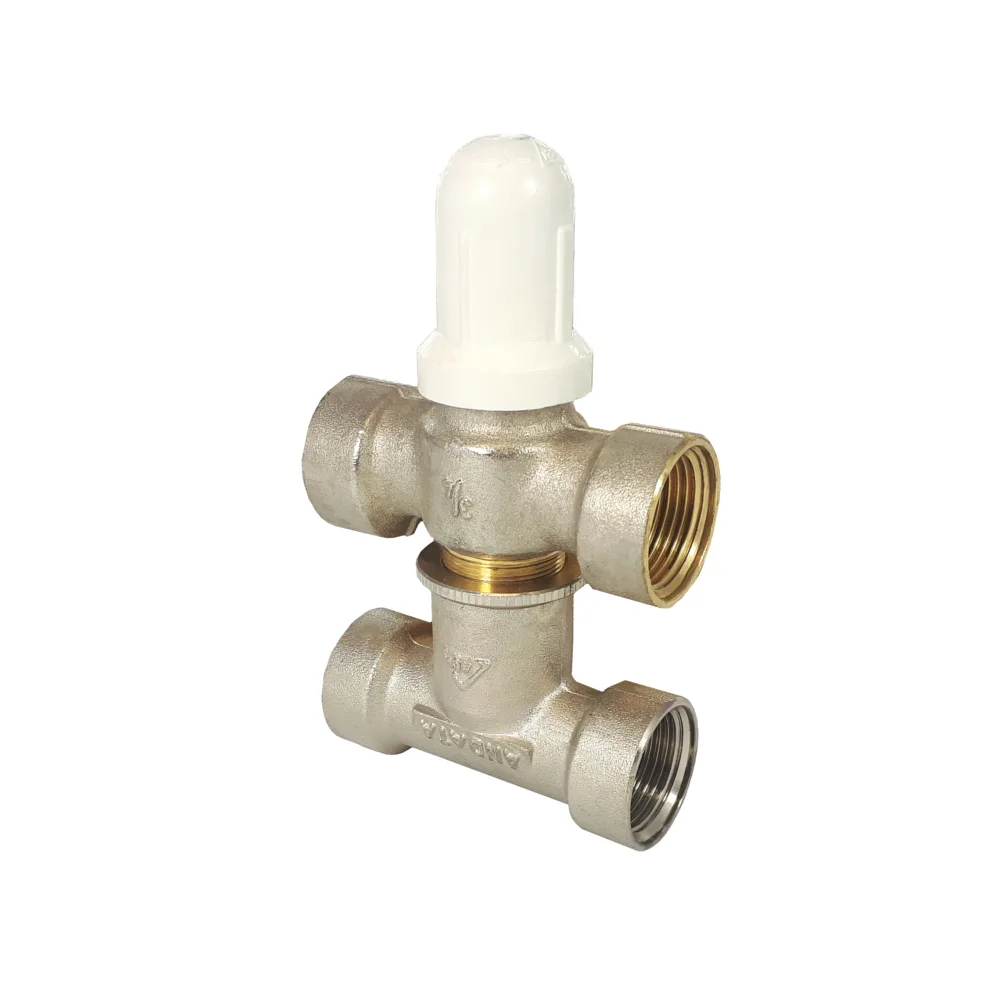

Four-way BY-PASS relief valve. Body, plug: CW 617N brass, spring: AISI 302 stainless steel, seal: ethylene-propylene, cap: ABS.
BY-PASS relief valve
CODE: 220.00w
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 3/4" | 14,77 | in stock |
MAIN FEATURES:
Nominal pressure= 1,0 MPa
Temperature range= 0°C ÷ +110°C
Pressure setting range=0,01 ÷ 0,04 MPa
Spacing of connections=50 ÷ 55mm
Ends F threaded ISO 228/1
Conform PN-91/M-75009 standard
