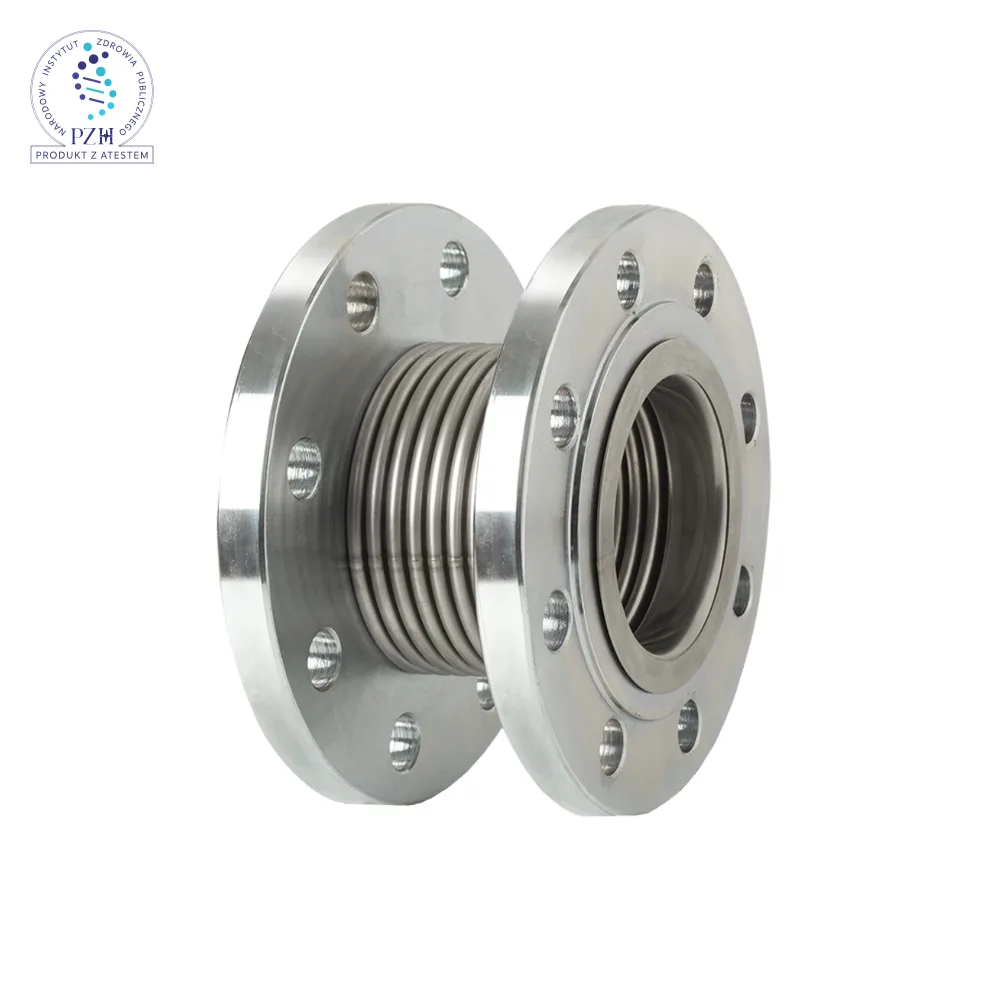

Bellows compensator for use in water, heating and industrial installations. The bellows and inner cover are made of austenitic, chrome-nickel steel, hardened by titanium. Works in vertical or horizontal position. Floating flanges made of galvanized carbon steel.
Bellows compensator, flanged ends
CODE: F9.3040
| DN | Netto price (EUR): | Availability |
|---|---|---|
| 25 | 163,02 | on order |
| 32 | 183,49 | on order |
| 40 | 200,23 | on order |
| 50 | 220,93 | standard |
| 65 | 253,95 | standard |
| 80 | 311,63 | standard |
| 100 | 379,53 | standard |
| 125 | 461,40 | on order |
| 150 | 601,40 | on order |
| 200 | 960,70 | on order |
| 250 | 1 330,70 | on order |
MAIN FEATURES:
Flanged ends PN 10/16 compliant with EN 1092-1
Nominal pressure= PN 16
Temperature range= -20°C ÷ +300°C
Working medium: water, oils, non-aggressive liquids
Axial movement: -20mm/+10mm
Meets requirements of Pressure Equipment Directive – 2014/68/EU
PZH certified for potable water
It has a national declaration of performance
