It is used to compensate a thermal expansion of the pipeline as well as to connect pumps and other devices that cause vibrations to the pipeline. The bellows is very flexible, so it can effectively absorb destructive thermal and mechanical deformations of the pipeline and protect against stresses. Connections: St 37.2 steel, bellows and inner insert: AISI 321 stainless steel.

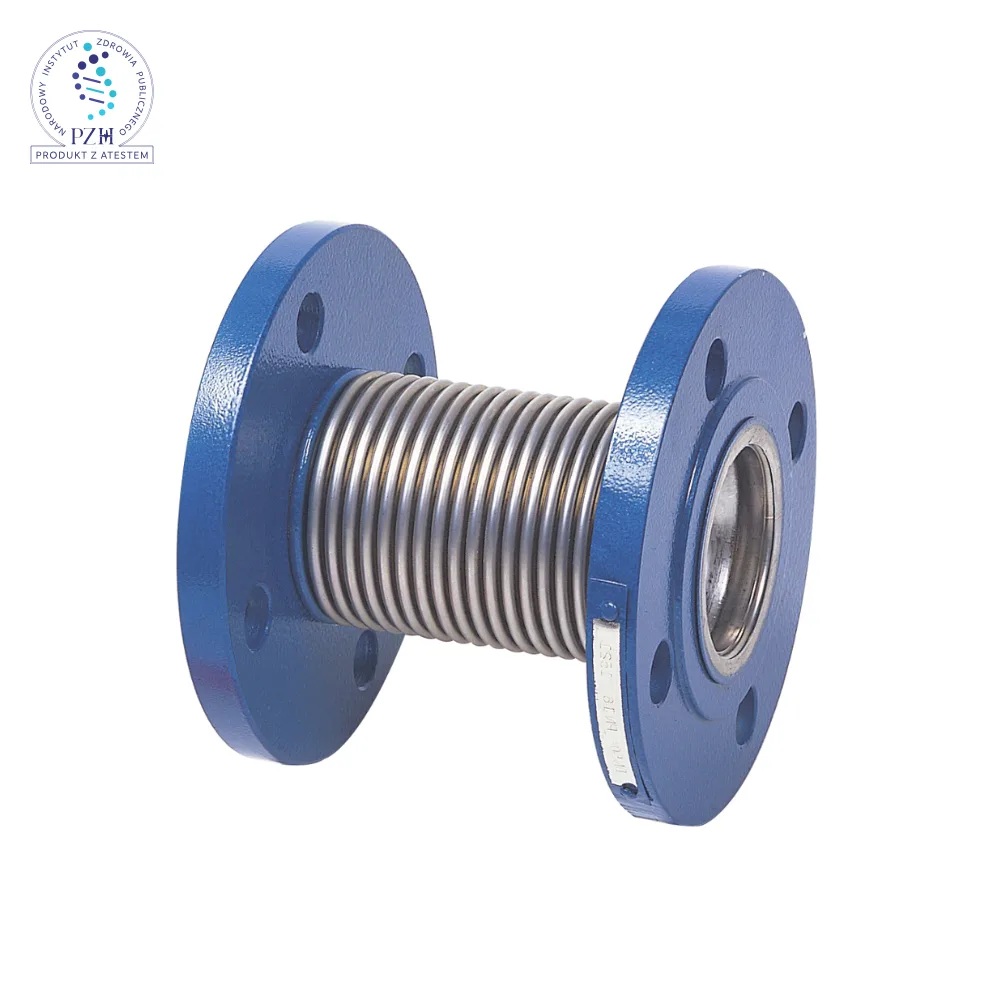

Bellows compensator, flanged ends
CODE: F10.3040
| DN | Axial movement [mm] | Netto price (EUR): | Availability |
|---|---|---|---|
| 25 | ± 11 | 250,23 | on order |
| 32 | ± 10 | 280,70 | on order |
| 40 | ± 13 | 304,19 | on order |
| 50 | ± 20 | 359,53 | on order |
| 65 | ± 20 | 404,88 | on order |
| 80 | ± 25 | 462,79 | on order |
| 100 | ± 32 | 542,33 | on order |
| 125 | ± 33 | 647,67 | on order |
| 150 | ± 40 | 841,63 | on order |
| 200 | ± 33 | 1 091,86 | on order |
| 250 | ± 40 | 1 379,30 | on order |
MAIN FEATURES:
Nominal pressure= 1.6 MPa
Temperature range= -20°C ÷ +300°C (for max. 1.0 MPa)
PN16 flanged ends
Meets requirements of Pressure Equipment Directive – 2014/68/EU
PZH certified for potable water
