Heavy-duty, full bore ball valve with drain cock for water, heating, cooling and compressed air installations. Body: CW 617N nickel-plated brass, ball: CW 614N chrome-plated brass, spindle: CW 617N brass, ball seals: PTFE, spindle seals: NBR rubber, control lever: galvanized and plastic-coated carbon steel.

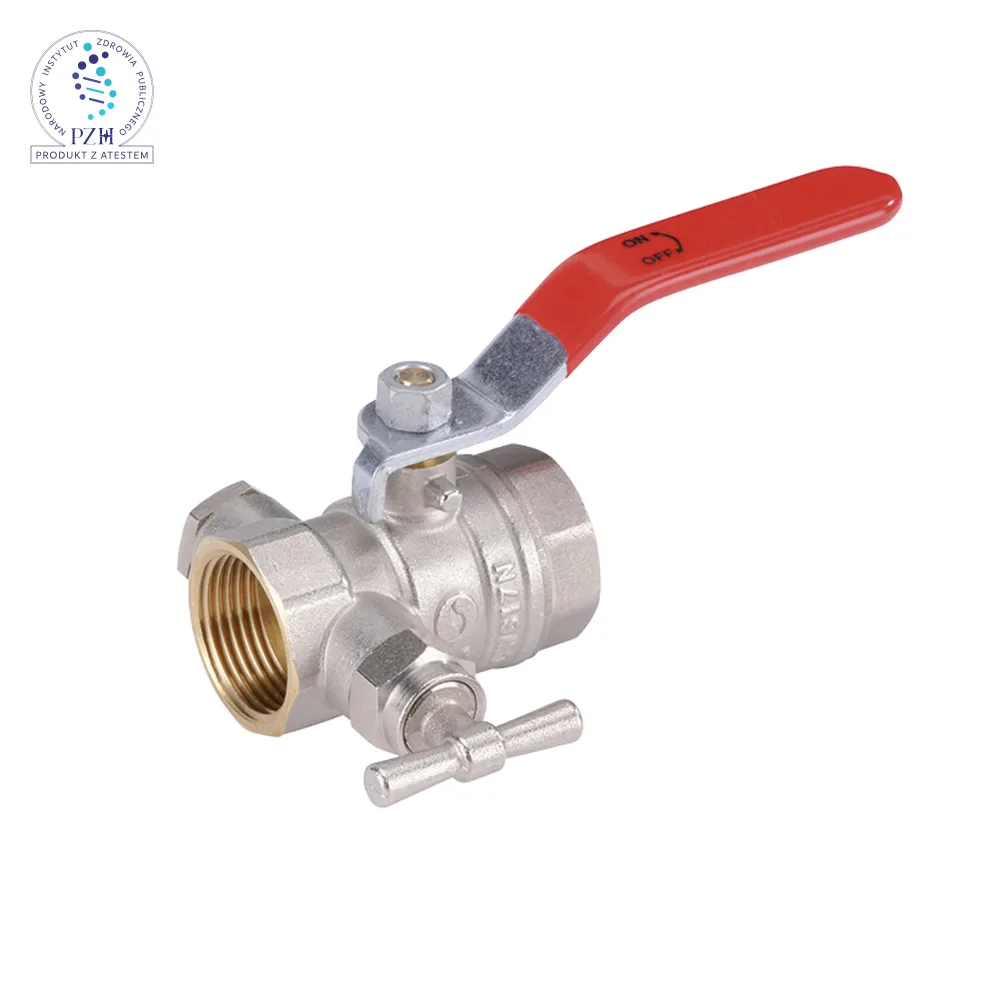

Ball valve with drain cock, full passage F/F with lever
CODE: 144
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 2,5 | 8,93 | standard |
| 3/4" | 2,5 | 12,21 | standard |
| 1" | 2,5 | 19,56 | standard |
| 1"1/4 | 2,0 | 30,63 | standard |
| 1"1/2 | 2,0 | 44,19 | standard |
| 2" | 1,6 | 64,81 | standard |
MAIN FEATURES:
Temperature range= -10°C ÷ +110°C
Nominal pressure = 2,5 MPa (1/2’’÷1″), 2,0 MPa (1″1/4÷1″1/2), 1,6 MPa (2’’)
Ends F threaded ISO 228/1
Conform PN-M-75002 and EN 13828 standards
PZH certified for potable water
