Ball valve for water, heating, cooling and compressed air installations. Body: nickel-plated brass, ball: chrome-plated brass, spindle: brass, seals: PTFE, NBR, control lever: galvanized and plastic-coated carbon steel.

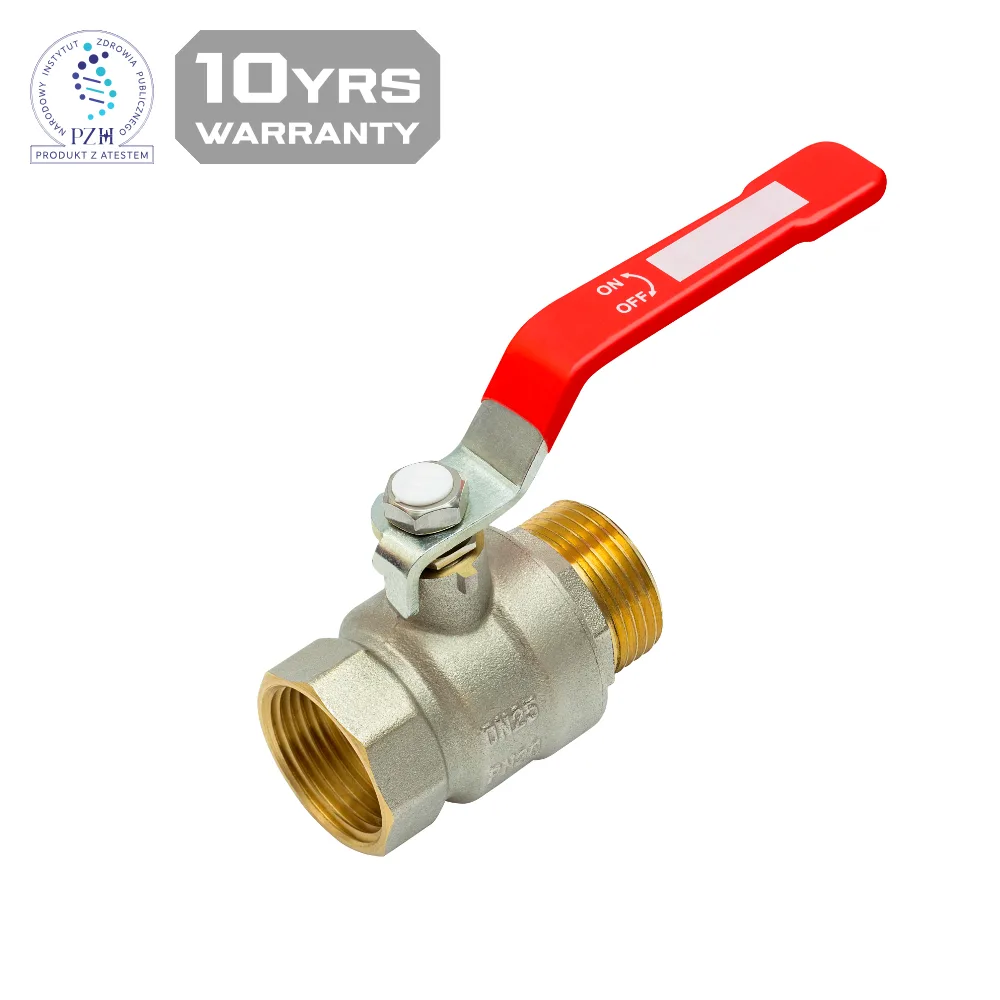

Ball valve M/F with lever
CODE: 147
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 2,0 | 6,28 | standard |
| 3/4" | 2,0 | 9,53 | standard |
| 1" | 2,0 | 15,33 | standard |
To download:
10 years warranty
Packing gland construction for additional sealing
A special place on the handle for additional marking
Two stoppers allow mounting of the handle in both directions
Knurled external threads for easy application of sealing materials
Interior without nickel coating, to meet requirements for contact with potable water
MAIN FEATURES:
Temperature range= 0°C ÷ +120°C
Nominal pressure = 2,0 MPa (1/2″ – 1″)
Ends M/F threaded ISO 228/1
Conform PN-M-75002:2016:10 standard
PZH certified for potable water
