Heavy-duty, full bore ball valve for water, heating, cooling and compressed air installations. Body: CW 617N nickel-plated brass, ball: CW 617N chrome-plated brass, spindle: CW 617N brass, ball seals: PTFE, spindle seals: NBR rubber, control lever: galvanized and plastic-coated carbon steel.

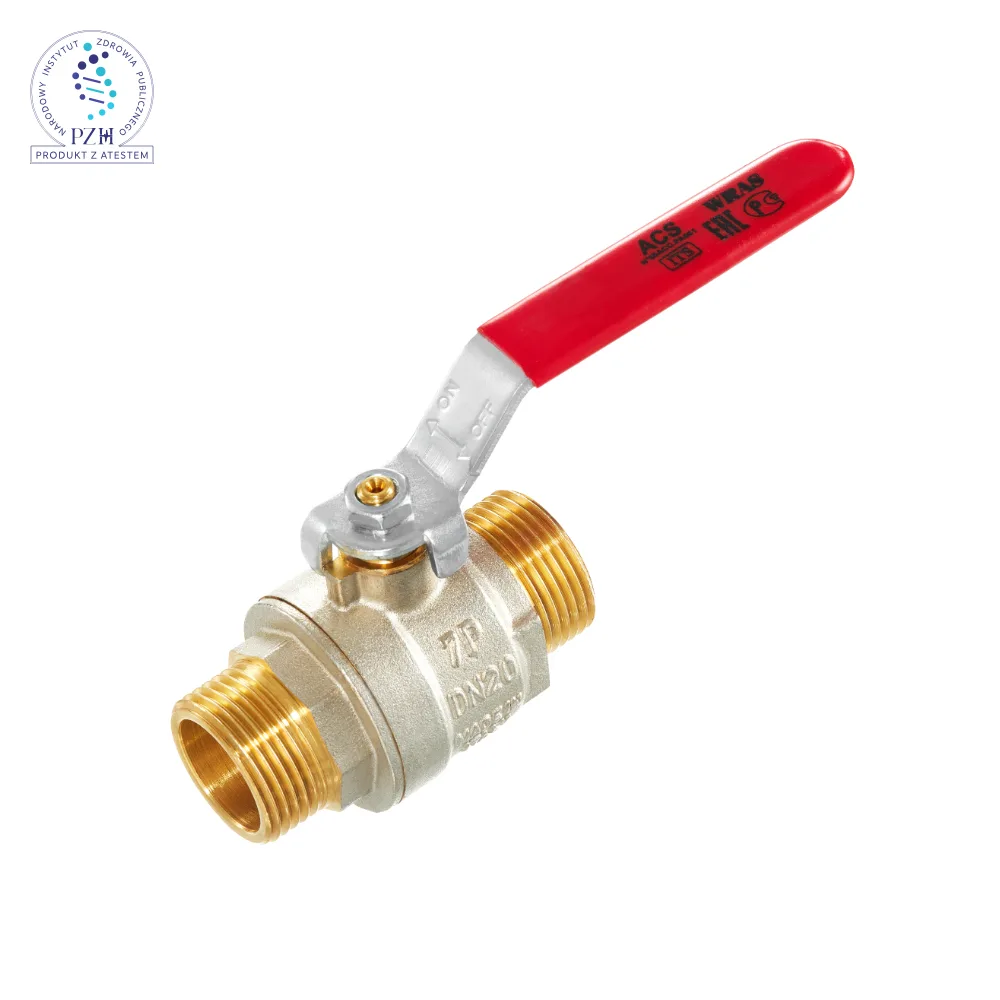

Ball valve full passage M/M with lever
CODE: 148
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 3,2 | 11,07 | standard |
| 3/4" | 3,2 | 15,70 | standard |
| 1" | 3,2 | 24,19 | standard |
MAIN FEATURES:
Temperature range= -10°C ÷ +110°C
Nominal pressure = 3,2 MPa
Ends F threaded ISO 228/1
Conform PN-M-75002 and EN 13828 standards
PZH certified for potable water
