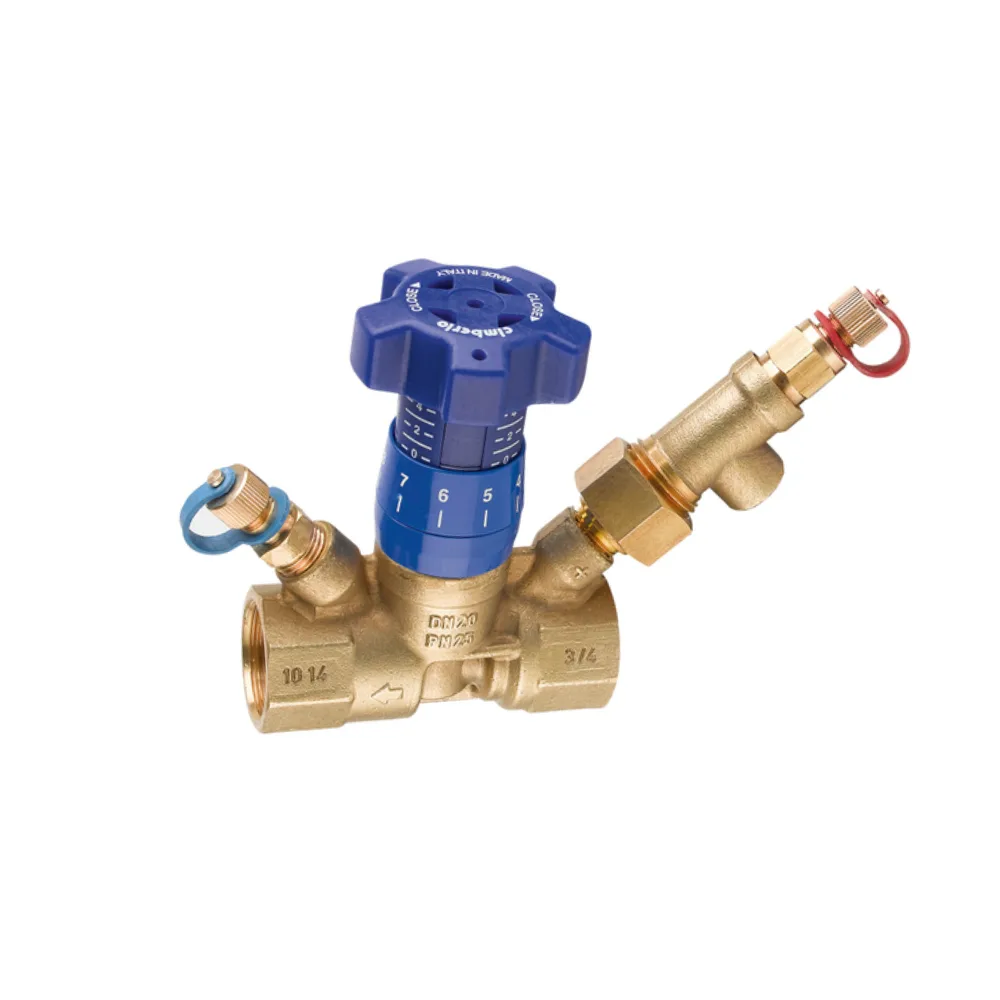

Balancing valve with variable orifice, measuring ports and capillary connection

CODE: 787OTDP

This is a balancing valve, designed to work with valve 718 (capillary included) or 767 (separate capillary purchase required CODE: 999UN/1). Made of CW 617N brass and equipped with GW/GW connections. Suitable for both domestic water, heating and cooling applications.

DN Kv [m³/h] Netto price (EUR): Avability
1/2" 1,75  71,00 on order
3/4" 2,87  74,00 on order
1" 4,08  80,00 on order
1"1/4 6,71 107,00 on order
1"1/2 10,40 116,00 on order
2" 15,06 140,00 on order

MAIN FEATURES:

Nominal pressure= 2,5 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids


Ends threaded ISO 7/1

Conform PN-91/M-75009 standard
