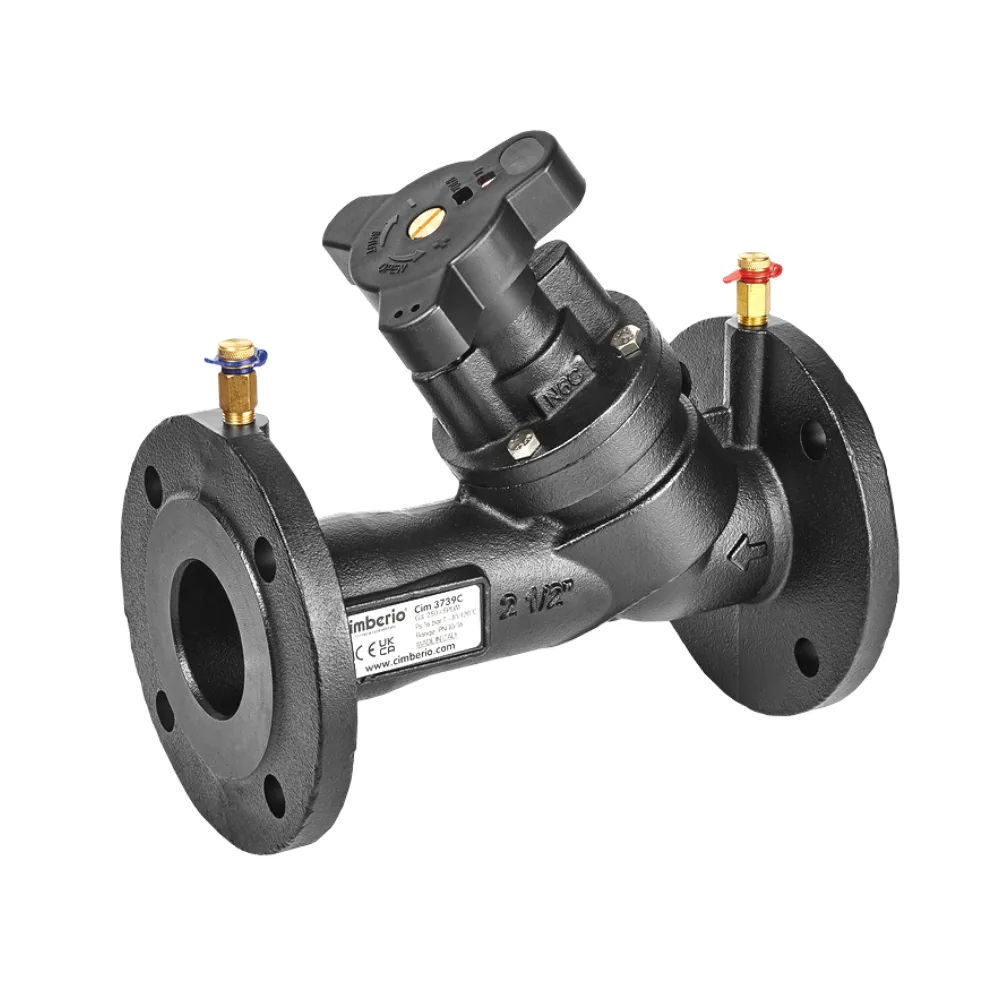

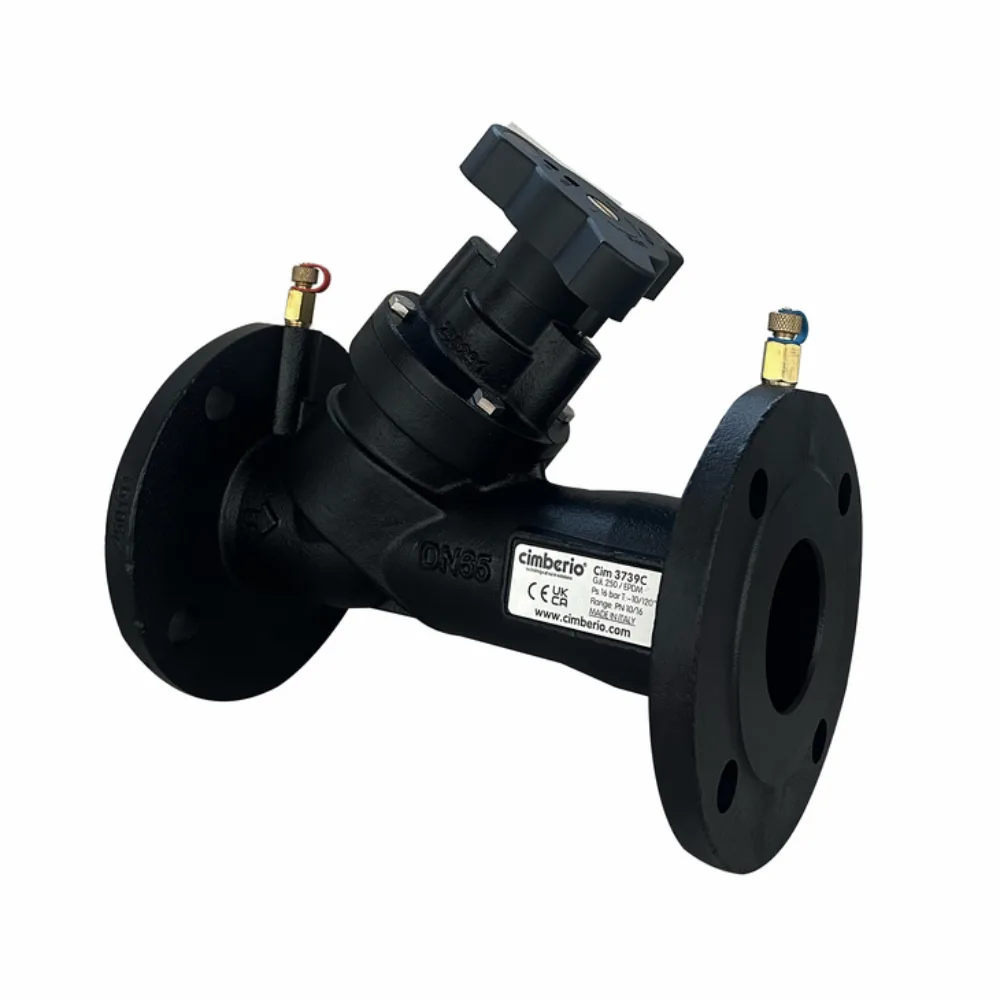

Balancing valve “BALANFLOW-EF” with variable orifice and measuring ports

CODE: 3739C

3739C are flanged balancing valves with a variable orifice, which in one body perfectly combine the properties of a flow control valve and a device measuring this quantity. They are intended for large heating or cooling installations. Product in size DN40 – is blue.

DN Kv [m³/h] Netto price (EUR): Avability
40 55,6    480,00 on order
50 55,6    480,00 on order
65 71,8    503,00 on order
80 108,0    633,00 on order
100 181,0    892,00 on order
125 255,2  1 249,00 on order
150 379,5  1 573,00 on order
200 927,1  3 033,00 on order

  • Body: ductile iron GJS-400 (DN 40-50); grey cast iron GJL-250 (DN 65-200).
  • Handwheel equipped with two windows indicating the degree of opening of the valve’s regulating plug.
  • Handwheel locking mechanism ensures that once the valve has been precisely set to a given flow rate, it can then be closed and reopened, always exactly to the same set position.
  • Regulating plug gasket: EPDM, to ensure a tight shut-off of the flow.

MAIN FEATURES:

Nominal pressure= 1,6 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids


Flanged ends PN16, according to ISO 7005-2 standard

Binder points connections F threaded 1/4″

Conform PN-91/M-75009 standard
