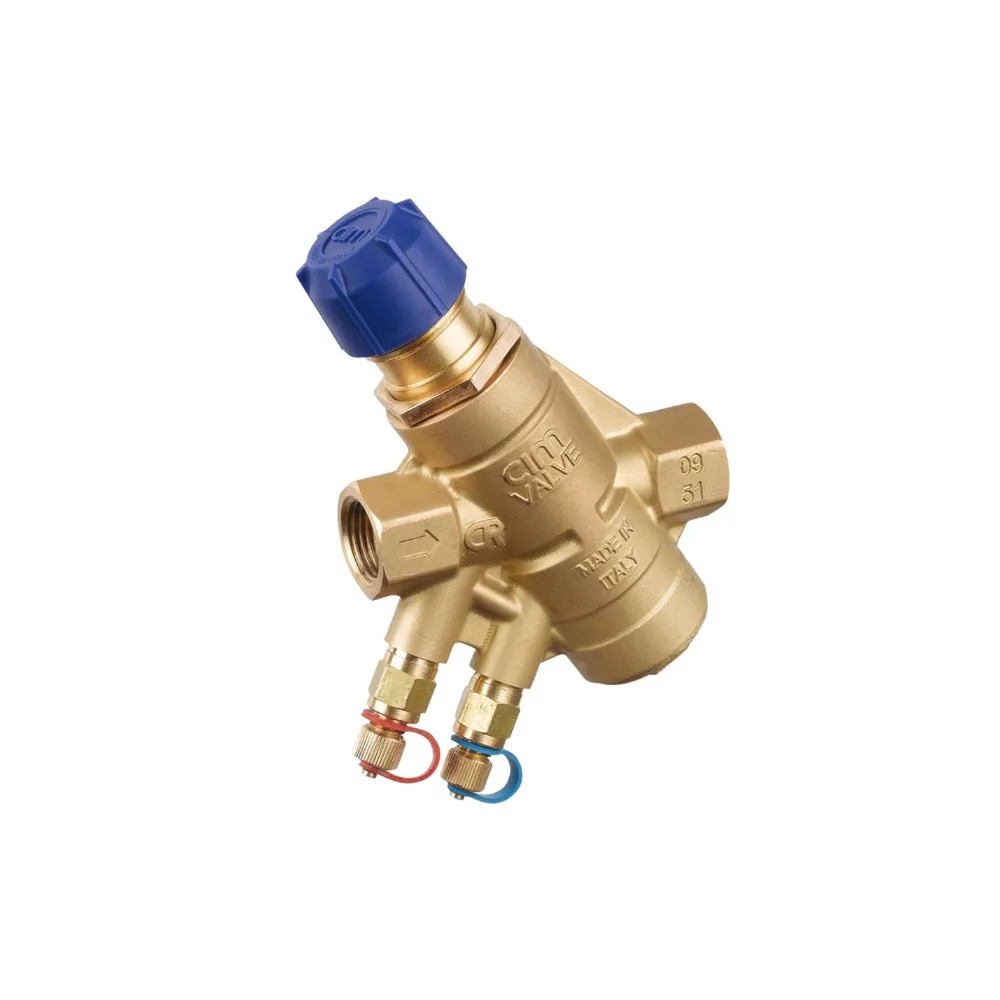

Automatic pressure independent control valve

CODE: 776

Balancing valves designed for automatic flow control in water, heating and cooling installations, regardless of pressure changes in the supply pipeline.

DN Flow [l/h] Netto price (EUR): Availability
1/2" (LF) 78÷625   242,09 on order
1/2" (HF) 244÷1724   242,09 on order
3/4" (LF) 131÷1050   244,42 on order
3/4" (HF) 292÷2039   244,42 on order
1" (LF) 231÷1722   268,37 on order
1" (HF) 292÷2039   268,37 on order
1"1/4 (HF) 465÷3056   368,14 on order
1"1/2 (HF) 2022÷7105   724,42 on order
2" (HF) 2204÷8586   773,95 on order

Thanks to their unique design, these valves can perform the following functions:

  • BALANCE – by selecting the appropriate flow in the installation;
  • STABILIZE – establishing a constant flow regardless of pressure fluctuations;
  • REGULATE – real-time flow depending on temperature.

Available in two flow classes:

  • LF Model (Low Flow)
  • HP Model (High Flow)

MAIN FEATURES:

Nominal pressure= 2.5 MPa

Temperature range= -10°C ÷ +120°C

Working medium: water, glycol and other non-aggressive liquids
