The valves maintain a constant, set temperature of the mixed water, regardless of the temperature and pressure of cold and hot water at the inlet. The valves have an automatic thermal cut-off function in the event of a lack of cold water supply. Body: chrome-plated brass resistant to dezincification CR CW 602N, closing element: PSU, spring: stainless steel, seals: EPDM, knob: ABS.

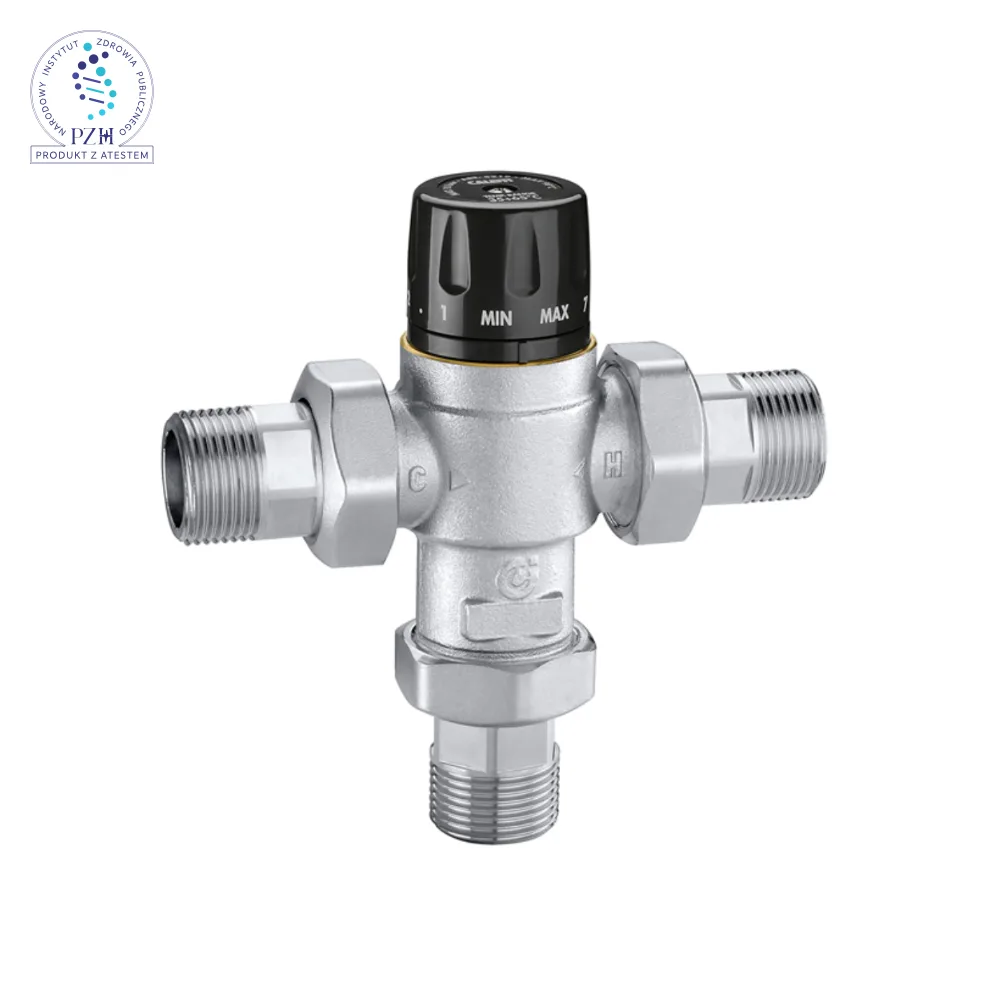

Anti-scalding thermostatic mixing valve
CODE: 521P
| DN | Setting range [°C] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 35 ÷ 65 | 194,88 | on order |
| 3/4" | 35 ÷ 65 | 210,93 | on order |
| 1" | 35 ÷ 65 | 332,56 | on order |
MAIN FEATURES:
Nominal pressure= 1.0 MPa
Maximum temperature= +90°C
Setting accuracy ± 2ºC
Minimum temperature difference between hot water and mixed water (for optimum efficiency) 15ºC
Minimum flow rate 5 l/min (for 1/2″ and 3/4″), 6 l/min (for 1″)
Maximum inlet pressure ratio (hot/cold or cold/warm) 2:1
Working medium: water
PZH certified for potable water
M threaded ends
