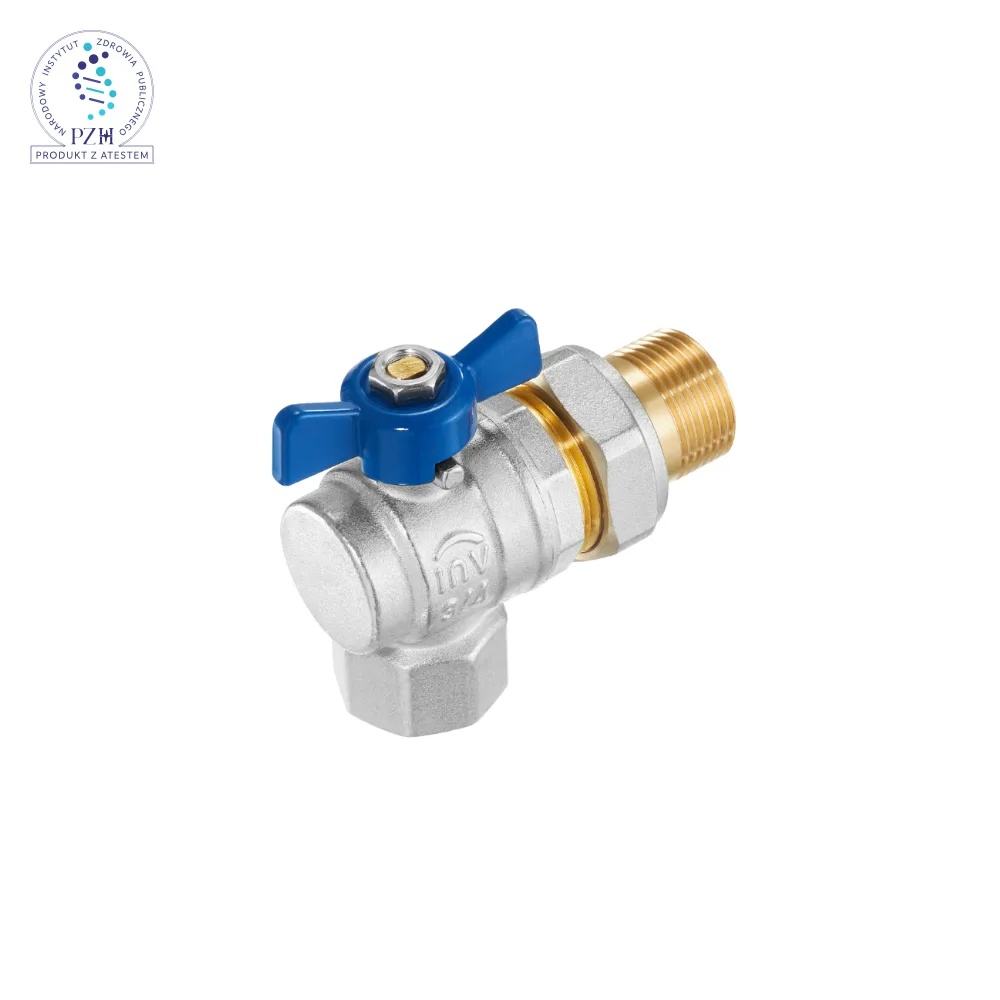

Angle ball valve standard passage for water and heating installations. Body: CW 617N nickel-plated brass, ball: CW 617N chrome-plated brass, spindle: CW 617N brass, ball seals: PTFE, spindle seals: NBR, butterfly handle: painted aluminum.
Angle ball valve M/F with 2-piece union
CODE: 130BK-INV
| DN | Pmax [MPa] | Netto price (EUR): | Availability |
|---|---|---|---|
| 1/2" | 1,6 | 19,40 | standard |
| 3/4" | 1,6 | 25,58 | standard |
| 1" | 1,6 | 31,63 | standard |
MAIN FEATURES:
Temperature range= 0°C ÷ +120°C
Nominal pressure = 1.6 MPa
Threaded ends ISO 228/1
Conform EN 13828, PN-M-75002 standards
PZH certified for potable water
